| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Dimensions | |
| Efficiency | |
| Form | |
| Input Connector | |
| Input Type | |
| Mounting Type | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| Standard Number | |
| Storage Temperature | |
| Temperature Coefficient | |
| Voltage | |
| Voltage Range |

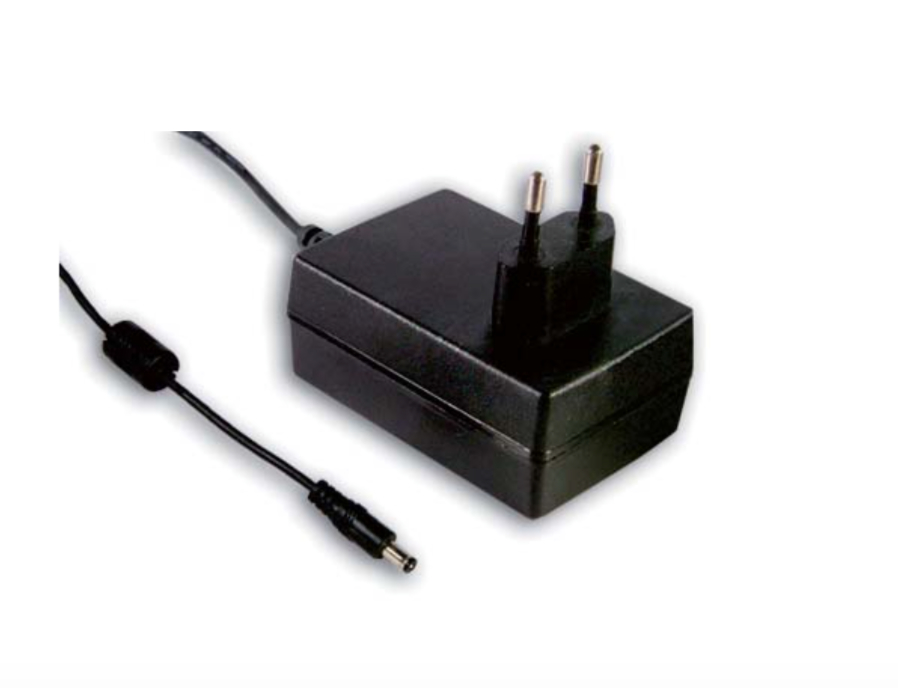

The Mean Well GS18E15-P1J is a versatile AC/DC wall mount adapter designed for various applications. It delivers a stable 15VDC output voltage with a maximum current of 1.2A, providing up to 18W of power.
This adapter features a wide input voltage range of 90-264 VAC, making it suitable for global use. Its compact dimensions of 79x54x33mm and wall mount form factor (Class II) ensure easy integration into different setups. The output is delivered via a standard barrel plug with a 2.1mm inner diameter and 5.5mm outer diameter, featuring a positive center.
Key specifications include an efficiency of 87% typical, a low leakage current of 0.25mA at 240VAC, and a minimum MTBF of 500K hours. The operating temperature range is from 0°C to 50°C. It is compliant with RoHS3 standards.
15VDC
90-264VAC or 135-370VDC
18W
1.2A
0°C to 50°C
87% typical
79mm x 54mm x 33mm (LxWxH) with a 2.1mm ID x 5.5mm OD barrel plug, positive center, cord length 1.83m
