| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
165 pcs
|
165 pcs | On Request | 1 | On Request | On Request | 2344 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Overall Contact Length | |
| Pitch | |
| Row Spacing | |
| Shrouding | |
| Storage Temperature | |
| Style | |
| Termination |

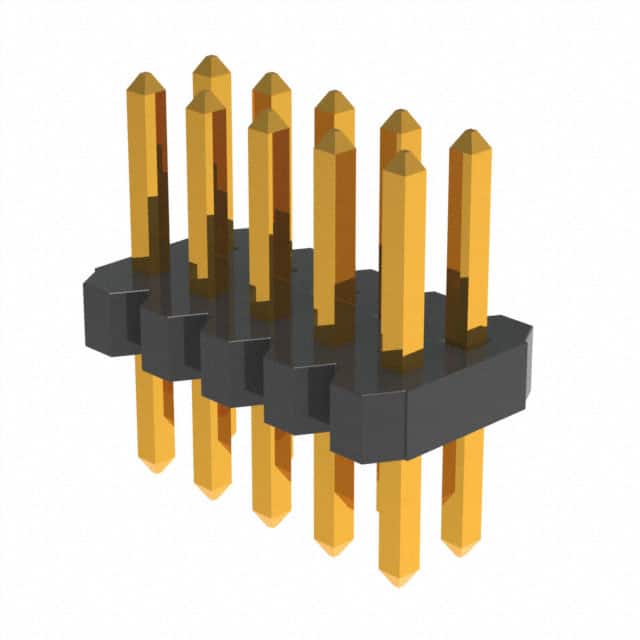

The GRPB052VWVN-RC is a 10 position, 2 row unshrouded male pin header from Sullins Connector Solutions. It features a 1.27mm pitch and 1.27mm row spacing, making it suitable for compact board-to-board or cable-to-board applications. The header uses square brass contacts with a gold flash finish and is housed in a polyamide (PA9T) insulator rated UL94 V-0. The overall contact length is 6.30mm with a mating pin length of 3.00mm and an insulation height of 1.00mm. Designed for through hole mounting with solder termination, this connector is rated for 1A current and operates over a temperature range of -40°C to 105°C.
The pitch is 1.27mm (0.050").
It has 10 positions arranged in 2 rows.
The current rating is 1A.
The operating temperature range is -40°C to 105°C.
It uses through hole mounting with solder termination.
The contacts are made of brass with a gold flash finish.
The insulator is polyamide (PA9T) with a UL94 V-0 flammability rating.
