| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,839 pcs
|
2839 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Row Spacing | |
| Shrouding | |
| Style | |
| Termination |

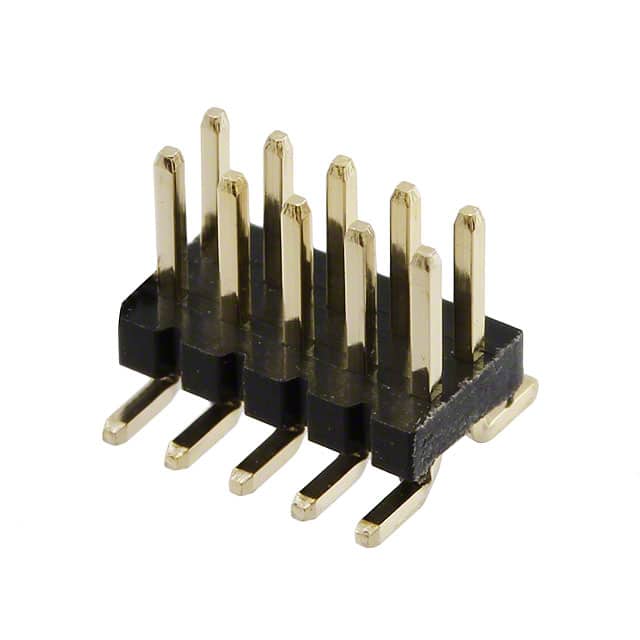

The GRPB052VWQP-RC is a 10-position, dual-row male pin header from Sullins Connector Solutions. It features a 1.27mm (0.050") pitch and is designed for surface mount (SMT) termination, making it suitable for compact board-to-board or cable-to-board applications. The unshrouded design allows for low-profile mating, and the header includes board guide features for alignment during assembly.
Contacts are made of brass with a gold flash overall finish, ensuring reliable electrical performance. The insulator is molded from polyamide (PA9T) with a UL94 V-0 flammability rating, providing good thermal and mechanical properties. The header is rated for 1A current per contact and supports an operating temperature range of -40°C to 105°C.
This part is RoHS3 compliant and is commonly used in space-constrained electronic assemblies where a reliable, low-pitch interconnect is required. The surface mount footprint and dual-row configuration simplify PCB layout and increase connection density.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.96 | $0.96 |
| 96+ | $0.70 | $0.70 |
| 192+ | $0.66 | $0.66 |
| 576+ | $0.61 | $0.61 |
| 1,056+ | $0.59 | $0.59 |
| 5,088+ | $0.53 | $0.53 |
| 10,080+ | $0.50 | $0.50 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
10 positions, all loaded, in a dual-row configuration.
1.27mm (0.050") pitch.
1A per contact.
Surface mount (SMT) with solder termination.
Gold flash overall.
Yes, RoHS3 compliant as indicated by the 'RC' suffix in the part number and datasheet.
Insulation is polyamide (PA9T) with UL94 V-0 flammability rating.
