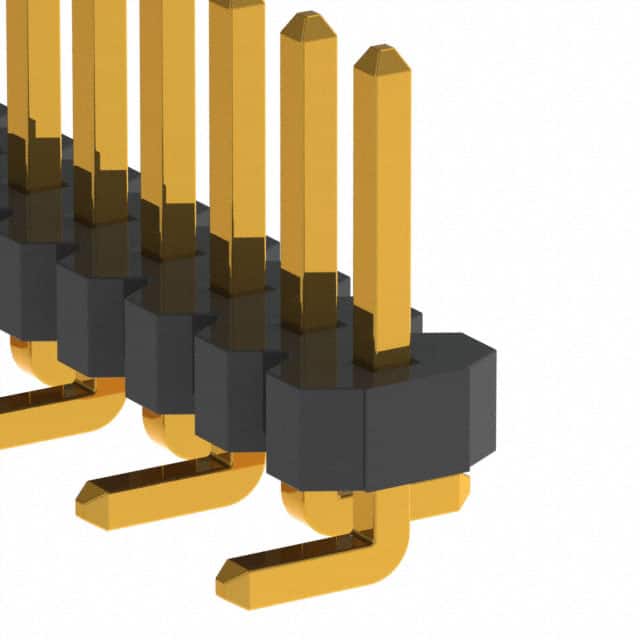

GRPB041VWTC-RC 4-position, 1.27mm pitch surface mount header with male pins, gold flash contacts, rated 1A.
Mfr Part #:

GRPB041VWTC-RC

Available from 1 distributors
Mfr Name: Sullins Connector Solutions
Sullins Connector Solutions
4-position, 1.27mm pitch surface mount header with male pins, gold flash contacts, rated 1A.
✓ Total Stock: 2,839 pcs
$ Price Range: $0.24 - $0.47

GRPB041VWTC-RC Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Braun Electronic Components ✓
Non-Authorised Inventory information
2,839 pcs
On Request
2839 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

GRPB041VWTC-RC Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Finish Thickness
Contact Length
Contact Material
Contact Shape
Contact Type
Current Rating (Amps)
Fastening Type
Insulation Height
Insulation Material
Lead Spacing
Lead Style
Material Flammability Rating
Mounting Type
Number of Positions
Number of Positions Loaded
Number of Rows
Operating Temperature
Pitch
Shrouding
Style
Termination
Termination Style
View Similar Products (0)

GRPB041VWTC-RC Description

Short technical summary and product information.

The GRPB041VWTC-RC is a 4-position, single row header from Sullins Connector Solutions. It features a 1.27mm (0.050") pitch and surface mount termination with solder contacts. The male pins are made of brass with a gold flash finish, ensuring reliable electrical connections. The header is unshrouded and designed for board-to-board or cable applications.



The insulation material is Polyamide (PA9T), Nylon 9T, rated UL94 V-0 for flammability. The operating temperature range is -40°C to 105°C, making it suitable for a variety of environments. The contact length is 3.00mm (0.118") and the insulation height is 1.00mm (0.039"). The header is rated for 1A continuous current.



This component is packaged for surface mount assembly and is RoHS3 compliant (unverified). It is commonly used in compact electronic devices where space-saving connectors are required.

GRPB041VWTC-RC Quick Information

Product Type: Header
Series: GRPB
Canonical Name: Sullins Connector Solutions GRPB041VWTC-RC - 4 Position 1.27mm Pitch Surface Mount Header, Male Pins
Subcategory: Male Pins

GRPB041VWTC-RC Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

GRPB041VWTC-RC Estimated Pricing

Qty Low High
1+ $0.47 $0.47
10+ $0.40 $0.40
100+ $0.34 $0.34
500+ $0.30 $0.30
1,000+ $0.29 $0.29
5,000+ $0.26 $0.26
10,000+ $0.24 $0.24

Estimated market price range - modelled values for guidance only, not live distributor offers.

GRPB041VWTC-RC Features

  • 4-position single row header with 1.27mm pitch.
  • Surface mount termination for automated assembly.
  • Gold flash contacts for reliable connectivity.
  • Rated for 1A continuous current.
  • Operating temperature range -40°C to 105°C.

GRPB041VWTC-RC Applications

  • Used in compact electronic devices requiring space-saving connectors.
  • Suitable for board-to-board interconnections in consumer electronics.
  • Ideal for cable-to-board applications in industrial controls.

GRPB041VWTC-RC FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does the GRPB041VWTC-RC have?

4 positions.

What is the pitch of this header?

1.27mm (0.050").

What is the current rating?

1A.

What is the mounting type?

Surface mount.

What is the contact finish?

Gold flash.

What is the operating temperature range?

-40°C to 105°C.

What is the insulation material?

Polyamide (PA9T), Nylon 9T, rated UL94 V-0.
