| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
13 pcs
|
13 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Shrouding | |
| Style | |
| Termination |

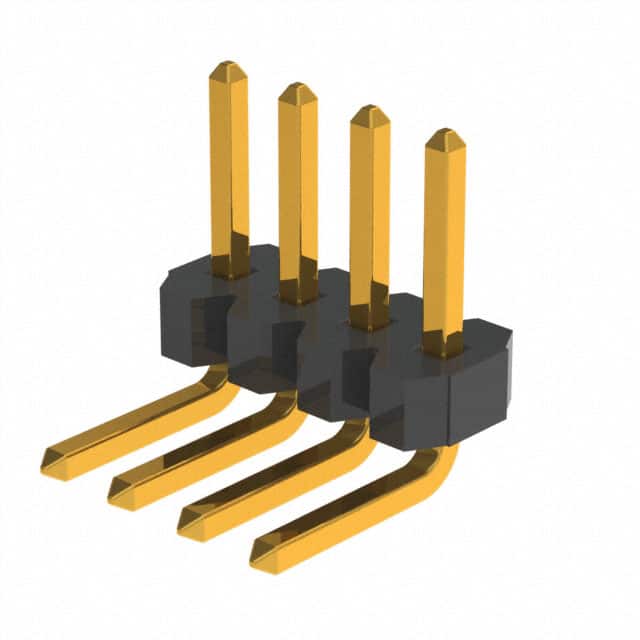

This 4-position, single-row header from Sullins Connector Solutions is designed for 1.27mm (0.050") pitch layouts. It uses a right-angle, through-hole mounting configuration, making it suitable for mezzanine or cable-to-board connections where a 90-degree connector orientation is needed. The header is unshrouded, providing direct access to the square pins for mating with standard receptacles.
The contacts are made of brass and feature a flash gold finish, offering good conductivity and corrosion resistance for the rated 1A current. The insulator is molded from polyamide (PA9T/Nylon 9T) and meets UL94 V-0 flammability requirements. With an insulation height of 2.14mm (0.084") and a contact length of 3.00mm (0.118"), this connector is optimized for low-profile board-to-board spacing.
The GRPB041VWCN-RC operates across -40°C to 105°C and uses push-pull mating without a locking mechanism. Solder termination provides a reliable mechanical and electrical bond to the PCB. This header is commonly used in compact electronic assemblies, test equipment, and interposer applications that require a dense 1.27mm pitch.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.48 | $0.48 |
| 10+ | $0.15 | $0.15 |
| 100+ | $0.11 | $0.11 |
| 200+ | $0.19 | $0.19 |
| 500+ | $0.19 | $0.19 |
| 1,000+ | $0.18 | $0.18 |
| 5,000+ | $0.07 | $0.07 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
It has 4 positions arranged in a single row.
1.27mm (0.050")
1A
Through-hole, right angle, using solder termination.
Flash gold over brass square pins.
-40°C to 105°C
It is unshrouded with a push-pull fastening type.
