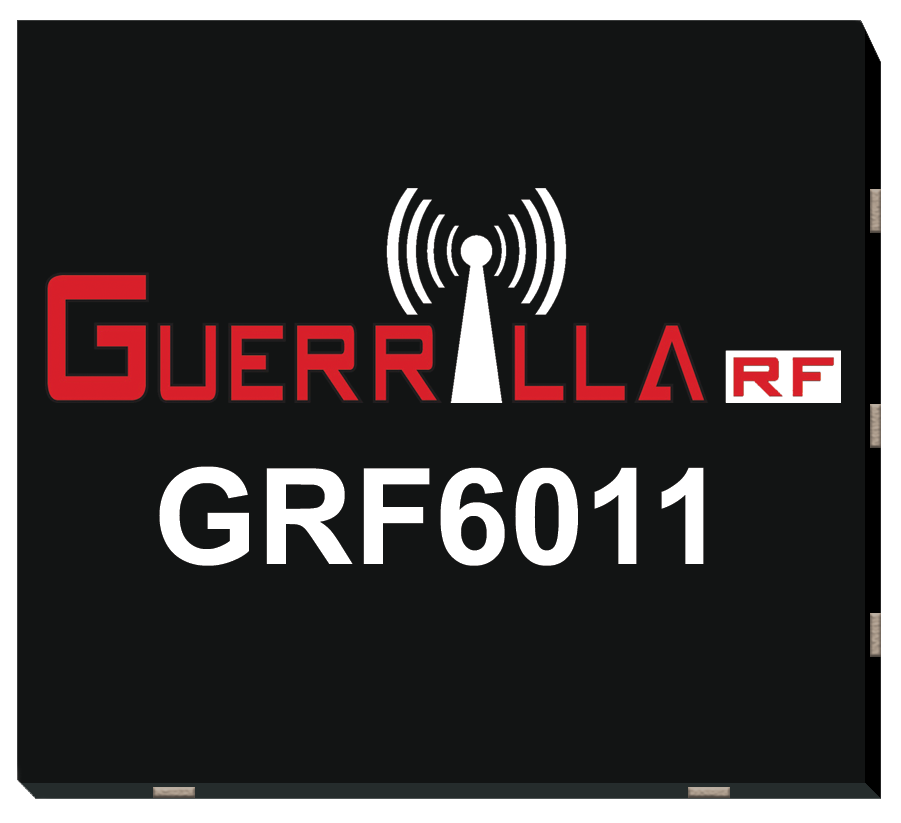

The GRF6011 from Guerrilla RF is a high-performance SPDT (Single Pole Double Throw) failsafe switch. It is designed to be linear and offers ultra-low loss across its operating frequency range of 0.1 to 6.0 GHz. This switch provides excellent linearity, with IP0.1dB levels greater than 1 Watt and IIP3 levels exceeding 55 dBm for both RF paths in switching mode.
A key feature of the GRF6011 is its failsafe characteristic when all voltage inputs are removed. In this failsafe mode, the RFC to RF1 path defaults to a high insertion loss, while the RFC to RF2 path defaults to a low insertion loss state that maintains high linearity. The device operates from a supply voltage range of 3.0 to 5.0 volts, with a single control input (VSEL).
With optimization of external components, the upper frequency range of the GRF6011 can be extended to 6 GHz. The switch is housed in a compact 1.5 DFN-6 package, making it suitable for space-constrained applications. It is well-suited for various markets including Automotive, Cellular Boosters/DAS, Military, and Wireless Audio applications.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The GRF6011 operates from 0.01 to 6.0 GHz.
The typical insertion loss for the GRF6011 is 0.44 dB.
The typical IIP3 for the GRF6011 is 55 dBm.
The GRF6011 operates from a supply voltage of 3.0 to 5.0 V.
The GRF6011 is supplied in a 1.5 DFN-6 package.
