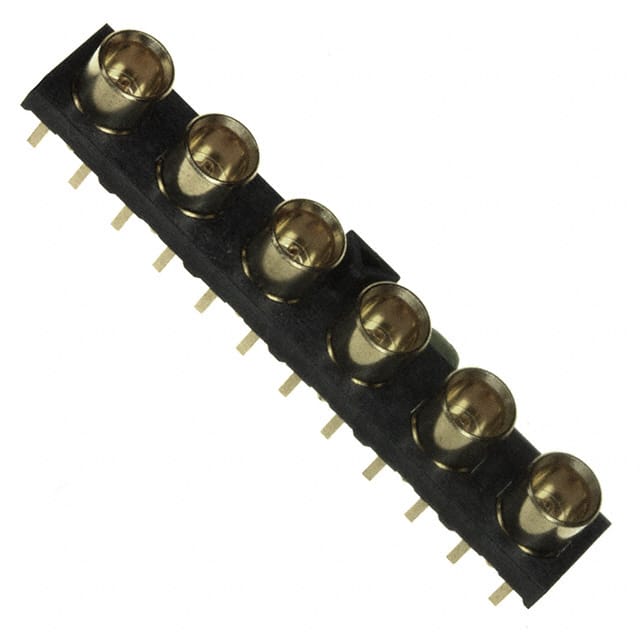

The Samtec GRF1-J-P-06-E-ST-TH1 is a 6-port ganged MMCX (V) RF connector jack featuring female sockets. It offers a characteristic impedance of 50 Ohms and operates over a frequency range of 0 to 6 GHz, making it suitable for multi-channel RF signal routing in dense PCB layouts.
Each signal pin supports a current rating of 3.6 A (nominal, 8 adjacent pins powered) while ground pins handle 6.2 A. The connector is designed for through hole vertical mounting with solder termination. The housing is gold-plated brass with a PTFE insulator, and the contacts are beryllium copper with 30 µ" gold over 50 µ" nickel plating.
The operating temperature range spans -40 °C to +90 °C. Dielectric withstanding voltage is 500 Vrms at 50 Hz, and working voltage is 170 Vrms. The connector uses a snap-on fastening mechanism and a 5.00 mm pitch between ports.
Packaging is tube with 19 parts per package. The part is RoHS compliant, halogen free, and lead-free solderable.
| Qty | Low | High |
|---|---|---|
| 1+ | $14.83 | $14.83 |
| 10+ | $13.38 | $13.38 |
| 25+ | $11.92 | $11.92 |
| 50+ | $10.91 | $10.91 |
| 100+ | $59.45 | $59.45 |
| 500+ | $58.27 | $58.27 |
| 1,000+ | $57.10 | $57.10 |
| 5,000+ | $55.96 | $55.96 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The pitch is 5.00 mm.
Signal pins: 3.6 A per pin (8 adjacent pins powered). Ground pins: 6.2 A per pin (8 adjacent pins powered).
Through hole (vertical solder mount).
-40 °C to +90 °C.
50 Ohms impedance and 0 to 6 GHz frequency range.
Shell: brass. Insulator: PTFE. Contacts: beryllium copper. Center contact and pin: brass. Plating: 30 µ" gold over 50 µ" nickel.
