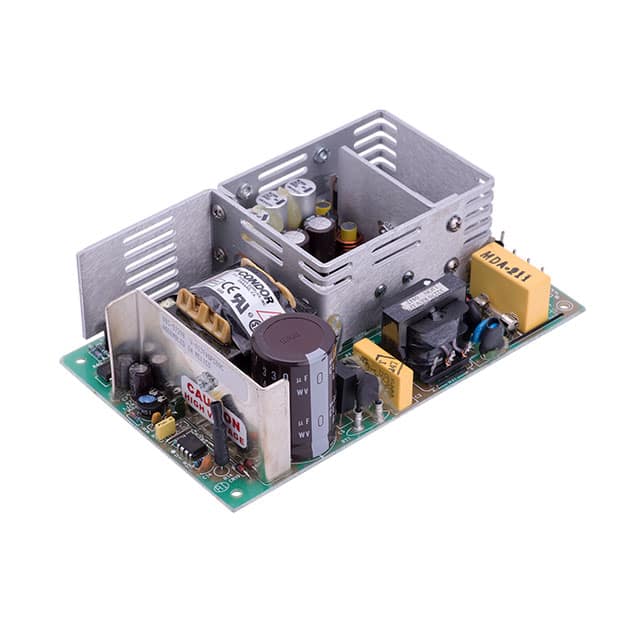

The SL Power Electronics GPM80-12 is an 80 Watt global single output performance switcher, designed for versatile applications. It accepts a wide-range AC input from 85 to 264 VAC, making it suitable for various power environments. This open frame converter provides a continuous output power of 80W, which can be boosted to 110W with forced air flow.
Key electrical specifications include a nominal 12V output voltage and a rated current of 6.7A. The unit offers adjustable output voltage on main outputs by ±5% via a built-in potentiometer and features remote sense capability. It operates efficiently with a typical efficiency of 70% at full load and nominal input voltage. Protection features include overload and short circuit protection, as well as overvoltage protection on the main outputs.
The GPM80-12 is built for demanding environments, operating from 0°C to 50°C at full rated output power, with derating applied above 50°C. Its mechanical dimensions are 177.8mm x 108.0mm x 47.2mm, suitable for chassis mounting. Compliance includes CE, cURus, and TUV approvals, along with built-in EMI filtering to meet emissions requirements. It is also RoHS3 compliant.
85-264 VAC at 47-63 Hz single phase.
Single 12V output, rated 6.7A, continuous power 80W (110W with airflow).
0°C to 50°C at full rated output power, derate 2.5% per °C above 50°C.
Chassis mount, open frame design.
Yes, remote sense is provided as a standard feature on single-output models.
70% typical at full rated load and nominal input voltage.
0.5% RMS, 1% pk-pk measured with 20 MHz bandwidth, differential mode.
