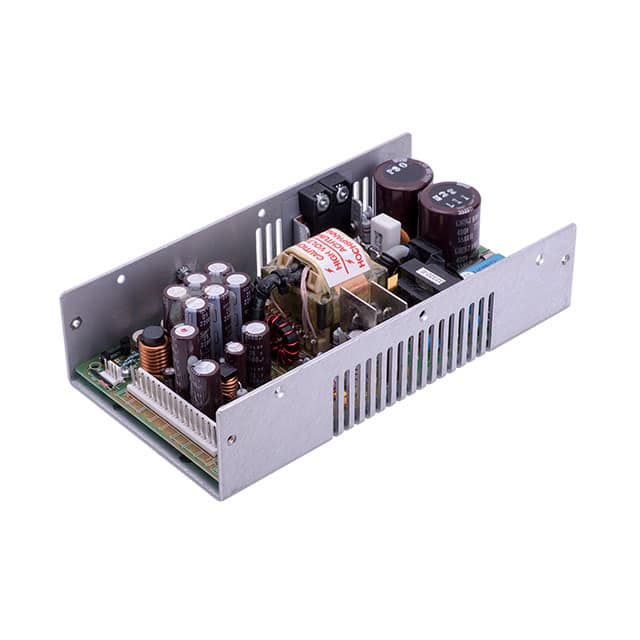

The SL Power Electronics GPM130DG is a 130 Watt Global Performance Switcher designed as an AC/DC converter. It operates with a wide-range AC input from 85 to 264 Vac and provides 100W of continuous output power, with a peak rating of 165W. The unit features four outputs and includes adjustable output voltage and remote sense functionality.
Designed for versatility, this open-frame converter has a chassis mount type and is approved for commercial applications to UL1950, IEC950, EN60950, and CSA22.2-234 L3 standards. It also meets medical approval standards including UL2601-1, IEC601-1, and CSA22.2 No. 601. The GPM130DG boasts an efficiency of 70% at full rated load and nominal input voltage. It operates within a temperature range of 0 to 50°C, with derating for higher temperatures.
Key specifications include a hold-up time of 20 ms, overload protection, and overvoltage protection on main outputs. Conducted EMI exceeds FCC Class B and CISPR 22 Class B for commercial models. The dimensions are 215.9mm x 114.3mm x 50.8mm. This converter is marked to LVD and comes with a 2-year warranty.
The GPM130DG provides 100 W of continuous output power.
The GPM130DG accepts a wide-range AC input from 85 to 264 Vac.
The GPM130DG features 4 outputs.
The GPM130DG is designed for operation from 0°C to 50°C.
Yes, the GPM130DG is fully protected against short circuit and output overload.
The dimensions of the GPM130DG are 215.9mm x 114.3mm x 50.8mm.
The GPM130DG has commercial approvals to UL1950, IEC950, EN60950, and CSA22.2-234 L3, and medical approvals to UL2601-1, IEC601-1, and CSA22.2 No. 601. It is also marked to LVD.
