Mfr Part #:

GPHC204-1002A001R1BF

Name: GPHC204-1002A001R1BF
Brand: Greenconn
SKU: GPHC204-1002A001R1BF

Mfr Name: Greenconn

Description:

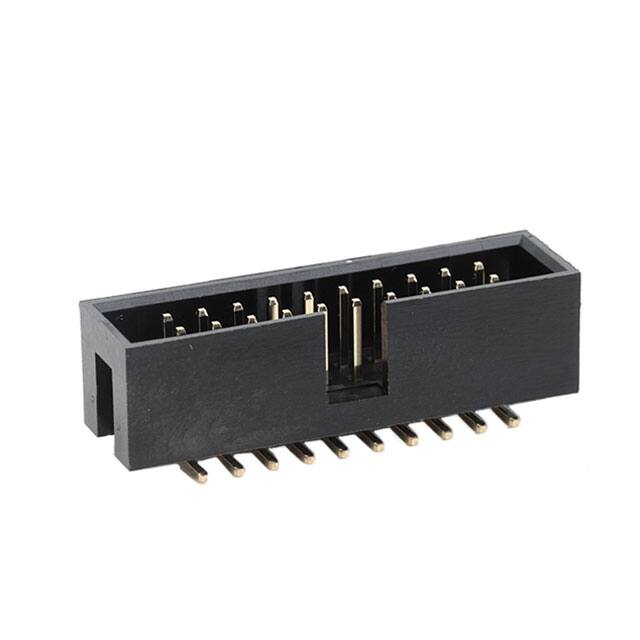

2.54MM PITCH BOX HEADER DUAL ROW

Stock on Request

GPHC204-1002A001R1BF Description

Short technical summary and product information.

2.54MM PITCH BOX HEADER DUAL ROW

Mfr Standard Lead Time: 12 weeks (varies by distributor)

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

Category	Headers, Male Pins
Manufacturer Name	Greenconn
Connector Type	Header
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Length	0.228" (5.80mm)
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3A
Fastening Type	Push-Pull
Features	Pick and Place
Insulation Color	Black
Insulation Height	0.350" (8.89mm)
Insulation Material	Polyamide (PA), Nylon, Halogen Free
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	20
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature	-40°C ~ 105°C
Pitch	0.100" (2.54mm)
Row Spacing	0.100" (2.54mm)
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder
