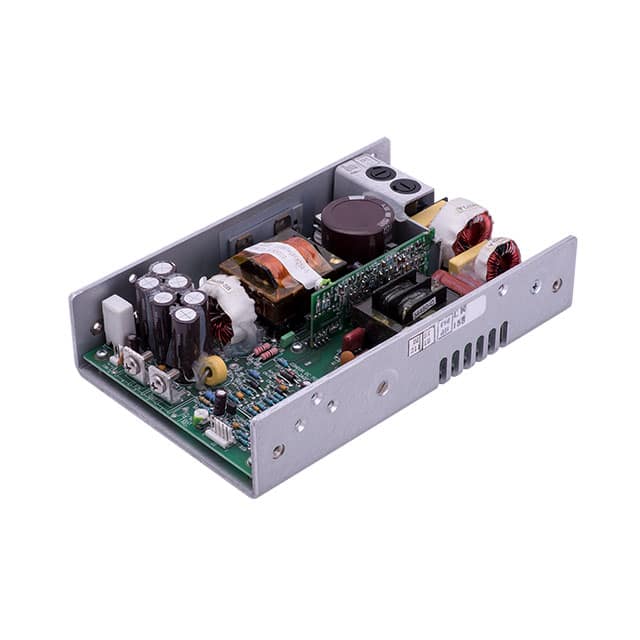

The SL Power Electronics GPFM250-15G is a 250 Watt Global Performance Switcher, specifically an AC/DC converter designed for medical applications. It provides a 15V output at 12A, delivering 180W under convection cooling and up to 250W with forced air.
This open frame converter features a universal input range of 85-264 VAC and 47-63 Hz. It boasts a power density of 3.6 watts/cu.in. and compact dimensions of 5.0” x 8.0” x 1.75”. Key electrical specifications include adjustable output voltage (±5%), low leakage current (< 300 μA), and high efficiency (minimum 75%).
Compliance includes FCC Class B and CISPR 22 Class B for conducted emissions (commercial models) and CISPR 11 Class B (medical models). It is approved to UL2601-1, IEC601-1/60601-1, and CSA-C22.2 No. 601.1 standards for medical use. The unit operates within a temperature range of 0°C to 50°C and offers features like adjustable output, PFC, remote sense, and a standby output.
The GPFM250-15G is suitable for medical equipment and other applications requiring reliable power conversion. Its chassis mount design and robust feature set make it a versatile choice for various system integrations.
0°C to 50°C.
85-264 VAC.
15V at 12A.
180W convection, 250W with forced air cooling.
Chassis mount open frame.
Yes, it complies with IEC 1000-3-2 Class A.
75% minimum at full load.
