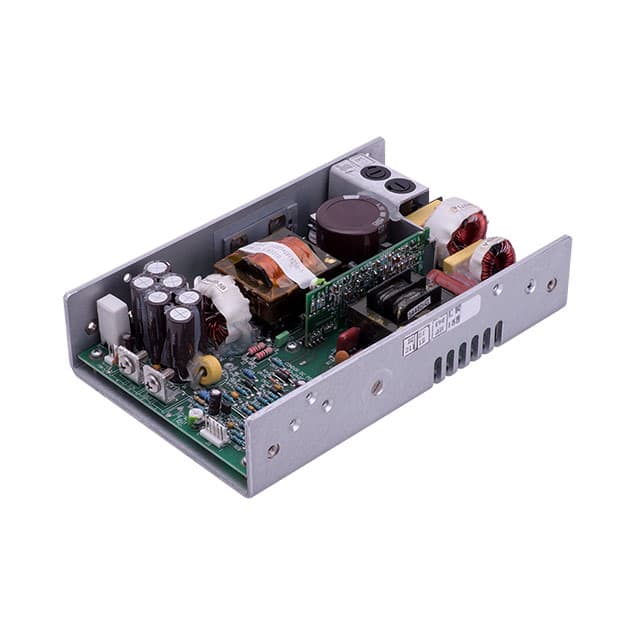

The SL Power Electronics GPFC250-15G is an open frame AC DC converter designed for ITE (Commercial) applications. It provides a single output of 15V at 12A, with a power rating of 180W (250W forced air).
Key electrical specifications include an input voltage range of 85 to 264 VAC, 80% efficiency, and 4 kV isolation voltage. The unit features adjustable output, PFC, remote on/off, remote sense, and a standby output. It operates within a temperature range of 0°C to 50°C with derating.
Mechanically, this converter is designed for chassis mounting and has dimensions of 203.2mm x 127.0mm x 44.5mm. It is compliant with CE, cURus, and TUV approval agencies. The product status is listed as obsolete.
The output voltage is 15V.
The output current is 12A.
The power rating is 180W, or 250W with forced air.
The input voltage range is 85 to 264 VAC.
The dimensions are 203.2mm x 127.0mm x 44.5mm.
The operating temperature range is 0°C to 50°C with derating.
It is approved by CE, cURus, and TUV.
