| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Voltage | |
| Power (Watts) | |
| Temperature Coefficient | |
| Type | |
| Voltage | |
| Width |

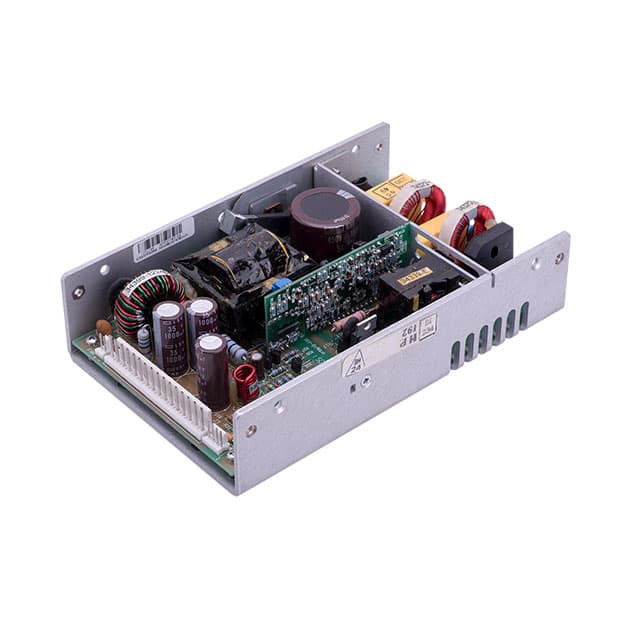

The SL Power Electronics GPFC160-24G is a 160 Watt Global Performance Switcher, categorized as an AC/DC converter. It operates with a universal input voltage range of 85-264 VAC and features power factor correction to IEC 1000-3-2 Class A standards. This open-frame unit is designed for chassis mounting and offers a single 24V output with a maximum current of 5.8A.
Key specifications include a compact size of 4.5" x 7.0" x 1.7", meeting 1U height requirements, and a power density of 3.0 watts/cu.in. It provides essential features such as PFC, remote sense capability, and overvoltage protection. The converter is protected against short circuit and overload conditions with automatic recovery.
Designed for commercial applications, the GPFC160-24G meets EMI compliance to CISPR22 and FCC Class B, and is approved to UL1950, IEC950, EN60950, and CSA 22.2 No. 950 safety standards. It operates within a temperature range of 0°C to 50°C and comes with a 2-year warranty.
85 to 264 VAC.
Open frame chassis mount with dimensions 177.8mm x 114.3mm x 43.2mm.
0°C to 50°C.
24V DC.
5.8 A.
25 ms minimum at full load, nominal line 115 Vac.
CISPR22 Class B and FCC Class B.
