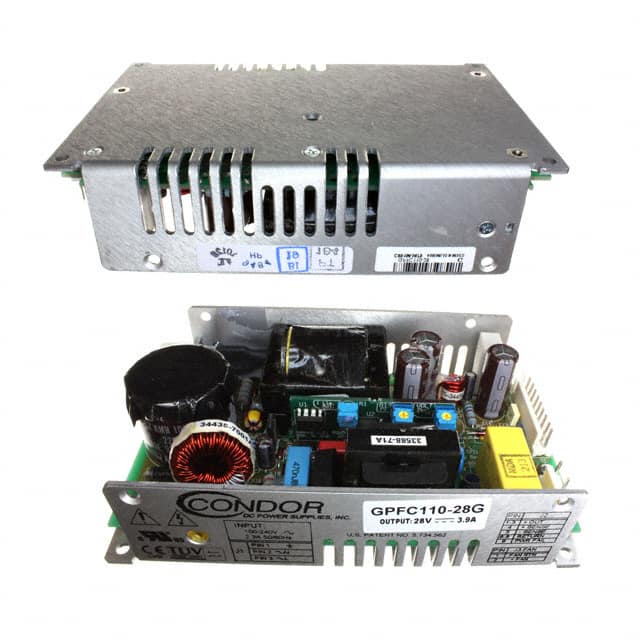

The SL Power Electronics GPFC110-28G is an open-frame AC/DC power supply designed for ITE (Commercial) applications. It offers a convection-cooled output of 75W, expandable to 110W with forced air.
Key electrical specifications include a wide input voltage range of 85-264 VAC and a maximum input current of 2.3A. The unit provides a single output with features such as adjustable output, remote sense, standby output, and universal input. It meets EMI compliance standards including CISPR 22 Class B and FCC Class B, with power factor correction to IEC 1000-3-2 Class A.
This converter is designed for chassis mounting and has compact dimensions of 6.30" x 3.75" x 1.62". It operates within a temperature range of 0°C to 50°C with derating. Safety approvals include CE, cURus, and TUV.
The GPFC110-28G is built with overload and short circuit protection, automatic recovery after faults, and overvoltage protection. It also features a power fail signal that goes low 8 ms before output voltage drops significantly.
The GPFC110-28G offers 75W output power with convection cooling and 110W with fan cooling.
The input voltage range is 85 to 264 VAC.
The dimensions are 6.30 inches (160.0mm) in length, 3.75 inches (95.3mm) in width, and 1.62 inches (41.2mm) in height.
The operating temperature range is 0°C to 50°C, with derating applied.
Yes, the unit is RoHS3 Compliant.
