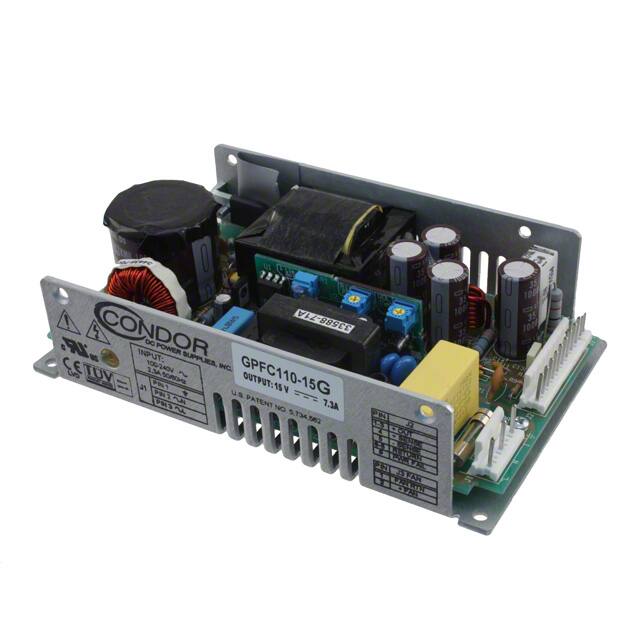

The SL Power Electronics GPFC110-15G is a commercial-grade, open-frame AC/DC power supply designed for ITE applications. It offers a maximum output power of 110W with forced air cooling or 75W with convection cooling, providing a stable 15VDC output at 5.3A.
This converter accepts a universal input voltage range of 85-264 VAC and features power factor correction to IEC 1000-3-2 Class A standards. Key electrical specifications include 2% line regulation and 2% load regulation, with a hold-up time of 25ms. For design flexibility, it includes adjustable output voltage (±5%), remote sense capability, and a standby output.
The compact dimensions of 6.30" L x 3.75" W x 1.62" H (160.0mm x 95.3mm x 41.2mm) make it suitable for chassis mounting in space-constrained environments. It operates within a temperature range of 0°C to 50°C with derating and meets various EMI/EMC standards including CISPR 22 and FCC Class B.
Compliance includes CE, cURus, and TUV approvals. A RoHS Compliant model is available.
The main output voltage is 15VDC.
The maximum output current is 5.3A.
The maximum power output is 110W with fan cooling and 75W with convection cooling.
The input voltage range is 85 to 264 VAC.
The operating temperature range is 0°C to 50°C with derating.
Yes, a RoHS Compliant Model is available.
The dimensions are 6.30" L x 3.75" W x 1.62" H (160.0mm x 95.3mm x 41.2mm).
