| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Features | |
| Frequency | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Voltage | |
| Power (Watts) | |
| Type | |
| Voltage | |
| Width |

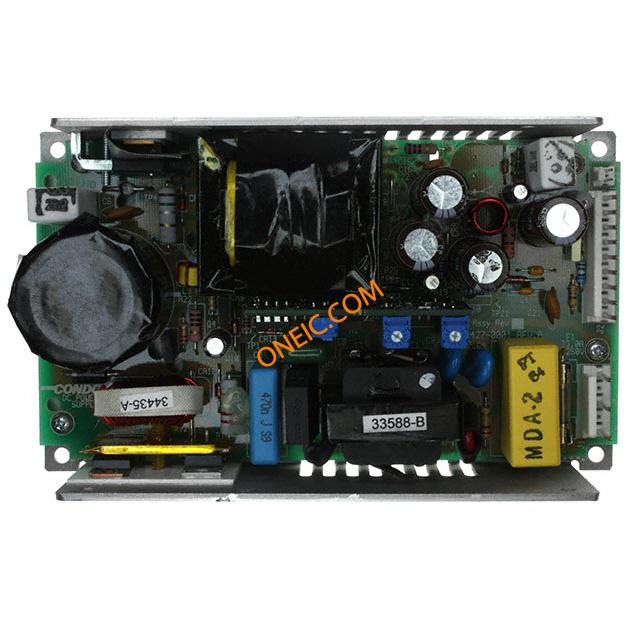

The SL Power Electronics GPFC110-15 is a 110 Watt Global Performance Switcher, designed as an open frame AC/DC power supply. It features a 15VDC output with a maximum current of 5.3A, providing 75W under convection cooling and 110W with forced air.
This power supply operates from a universal input voltage range of 85-264 VAC at 47-63 Hz. It includes features such as adjustable output, remote sense, and a standby output. The unit is designed for chassis mounting and meets compact size requirements, fitting within a 1U height.
Key electrical specifications include a hold-up time of 25 ms, output noise of 0.5% rms / 1% pk-pk, and a transient response time of 500 μs. It is protected against short circuit and output overload. The operating temperature range is 0°C to 50°C with derating.
Compliance includes EMI/EMC standards like CISPR 22 and FCC Class B, with harmonic distortion meeting IEC1000-3-2 Class A. Safety approvals cover UL1950, IEC950, and CSA 22.2 No. 950. A RoHS 3 compliant model is available.
The output voltage is 15 VDC.
The maximum output current is 5.3 A.
The maximum power output is 110 W when fan cooled, and 75 W when convection cooled.
The input voltage range is 85 to 264 VAC.
The operating temperature range is 0°C to 50°C with derating.
Yes, it is RoHS 3 compliant.
