| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Duration | |
| Features | |
| Height | |
| Input Voltage | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Current | |
| Output Voltage | |
| Overload Protection | |
| Package / Case | |
| Power (Watts) | |
| Type | |
| Voltage | |
| Width |

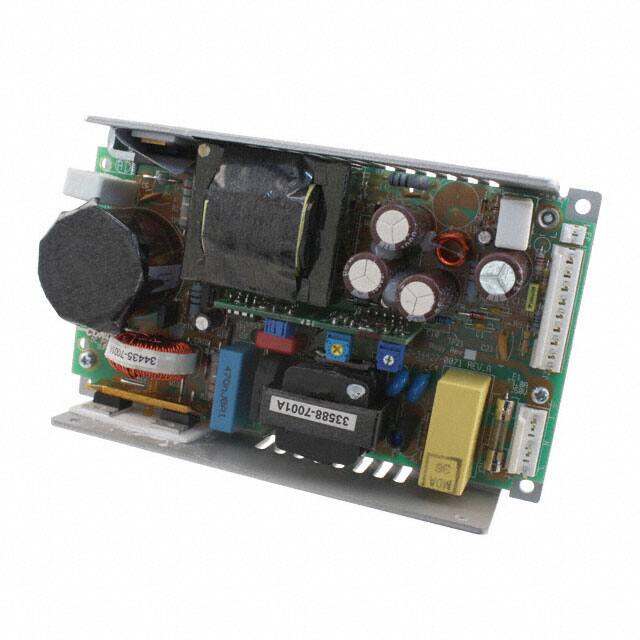

The SL Power Electronics GPFC110-12G is an open-frame AC/DC converter designed for ITE (Commercial) applications. It accepts a universal input voltage range of 85 to 264 VAC.
This model delivers a single 12V output with a maximum current of 6.7A, providing 75W of power under convection cooling and up to 110W with forced air. Key electrical features include adjustable output voltage (±5%), remote sense capability, and overload/short circuit protection.
Designed for easy integration, the GPFC110-12G features a chassis mount type and compact dimensions of 6.30" x 3.75" x 1.62". It meets various EMI/EMC standards including CISPR 22 and FCC Class B, and is approved by CE, cURus, and TUV.
Additional features include standby output and universal input. The operating temperature range is 0°C to 50°C with derating. A 2-year warranty is provided.
The main output voltage is 12VDC.
The maximum output current is 6.7A.
It provides 75W of power under convection cooling and up to 110W with forced air.
The input voltage range is 85 to 264 VAC.
The dimensions are 6.30 inches by 3.75 inches by 1.62 inches.
The operating temperature range is 0°C to 50°C with derating.
Yes, it is fully protected against short circuit and output overload.
