| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Input Frequency | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Voltage | |
| Overload Protection | |
| Power (Watts) | |
| Temperature Coefficient | |
| Type | |
| Voltage | |
| Width |

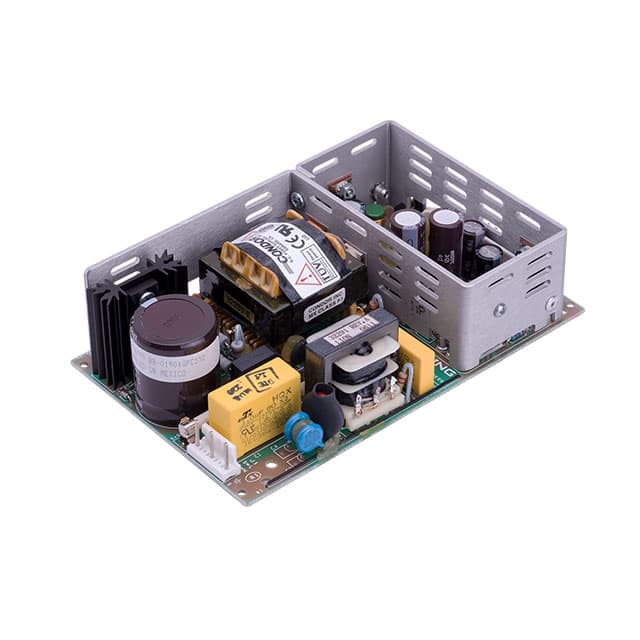

The SL Power Electronics GPC55-48 is a 55 Watt AC/DC converter designed for ITE (Commercial) applications. It operates with a wide-range input voltage of 85-264 VAC and provides a nominal output of 48V at 1.5A. This open frame converter is suitable for chassis mounting.
Key electrical specifications include an efficiency of 70% at full load and nominal input voltage. It offers a hold-up time of 20 ms minimum from loss of AC input. The unit is fully protected against short circuit and output overload conditions. Transient response is typically 500 μs for a 50% load step change.
The operating temperature range is 0°C to 50°C at full rated output power, with derating applied above 50°C. The physical dimensions are 160.0mm in length, 100.0mm in width, and 42.7mm in height.
Compliance includes CE, cURus, and TUV approvals. The GPC55-48 is RoHS3 Compliant, has an MSL of 1, and is REACH Unaffected.
The GPC55-48 has a nominal output voltage of 48V.
The GPC55-48 provides 55W of continuous output power and 70W peak power.
The GPC55-48 accepts an input voltage range of 85 to 264 VAC.
The GPC55-48 is designed for operation from 0°C to 50°C at full rated output power.
The GPC55-48 is an open frame converter designed for chassis mounting.
The GPC55-48 measures 160.0mm in length, 100.0mm in width, and 42.7mm in height.
