| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Input Frequency | |
| Input Voltage | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Power | |
| Overload Protection | |
| Power (Watts) | |
| Temperature Coefficient | |
| Turn On Time | |
| Type | |
| Voltage | |
| Width |

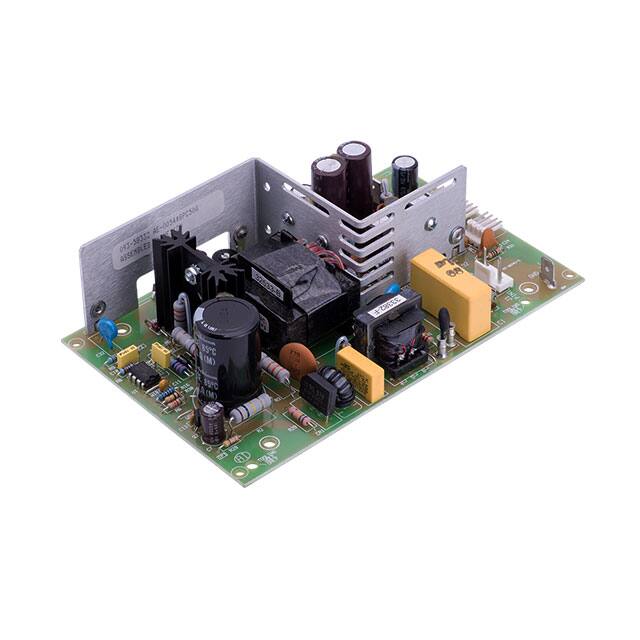

The SL Power Electronics GPC50A is an open-frame AC/DC converter designed for ITE (Commercial) applications. It provides a continuous output power of 50W, with a peak rating of 60W for short durations. The unit accepts a wide input voltage range of 85-264 VAC and features adjustable outputs on channels 1 and 2 with ±5% capability.
Key electrical specifications include an efficiency of 65% at full load and nominal input voltage. It offers protection against overload, short circuits, and overvoltage. The operating temperature range is 0°C to 50°C, with derating applied above 50°C. The converter meets various EMI/EMC standards including FCC Class B and EN55022 Class B.
Designed for chassis mounting, the GPC50A has dimensions of 160.0mm x 99.6mm x 39.9mm. It is approved to safety standards such as UL1950, CSA22.2 No. 234 Level 3, IEC950, and EN60950. The product is RoHS3 compliant.
85-264 VAC.
0°C to 50°C at full rated output power, derate 2.5% per °C above 50°C.
5V and +/-12V.
50W continuous, 60W peak (60 seconds max, 10% duty cycle).
Overload protection, short circuit protection (cycling on outputs 1&2, foldback on output 3), and overvoltage crowbar on V1.
UL1950, CSA22.2 No. 234 Level 3, IEC950, and EN60950.
160.0mm x 99.6mm x 39.9mm.
