| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Voltage | |
| Power (Watts) | |
| Tape & Reel | |
| Type | |
| Voltage | |
| Width |

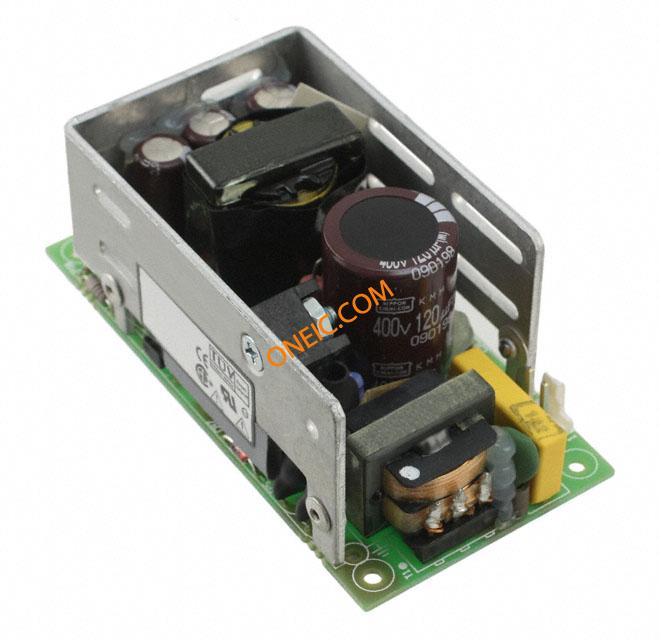

The SL Power Electronics GPC41-24G is an AC/DC power supply designed for commercial applications. It provides a single output of 24V at 1.7A, delivering a total power of 40W, with a maximum power rating of 41W.
This power supply operates with a wide input voltage range of 85 to 264 VAC and features a switching (Open Frame) type. Its electrical characteristics include 77% efficiency and 0.75% load regulation. The dimensions are 101.6mm x 50.8mm x 38.1mm, making it suitable for chassis mounting.
Environmental parameters include an operating temperature range of 0°C to 50°C. The GPC41-24G is RoHS3 compliant and has an MSL rating of 1.
85-264VAC.
24VDC at 1.7A.
40W (41W max).
0°C to 50°C.
101.6mm x 50.8mm x 38.1mm.
Chassis mount.
77%.
