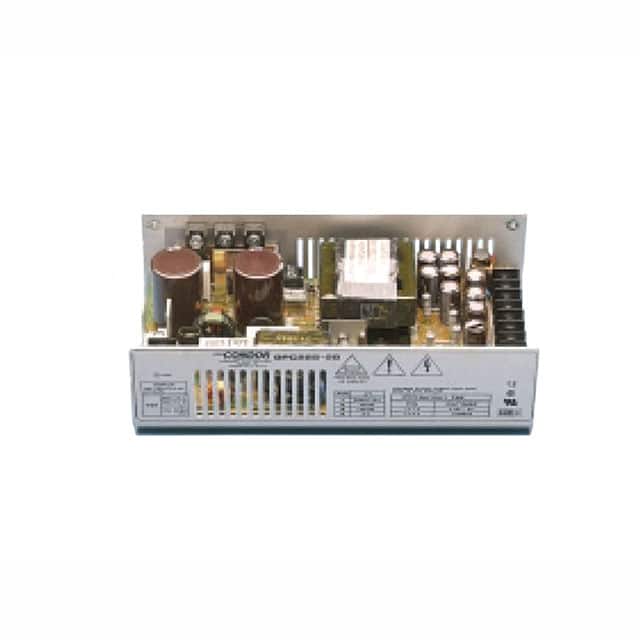

The SL Power Electronics GPC225-28G is a 225-watt global performance switcher, categorized as an open frame AC/DC converter. It is designed for chassis mounting and features a wide input voltage range of 85 to 264 VAC.
Key electrical specifications include an input current of 5.5A at 120 VAC, a hold-up time of 20 ms, and an efficiency of 70% at full load. The unit offers overload and overvoltage protection, with overvoltage protection typically at 124% ± 12%. It also includes features like adjustable output voltage (±5%), remote sense, and a power fail signal.
Environmental considerations include an operating temperature range of 0 to 50°C, with derating of 2.5% per °C above 50°C. The converter meets conducted emissions standards including FCC Class B and CISPR 22 Class B.
This AC/DC converter is suitable for ITE (Commercial) applications and is approved by CE. Its dimensions are 228.6mm x 127.0mm x 63.5mm.
The input voltage range is 85 to 264 VAC.
The maximum output power is 225W with forced air, and 250W peak.
The operating temperature range is 0°C to 50°C.
Yes, it is fully protected against short circuit and output overload with cycling type power limiting and automatic recovery.
The dimensions are 228.6mm x 127.0mm x 63.5mm.
The RoHS status is RoHS3 Compliant.
The Moisture Sensitivity Level is 1 Unlimited.
