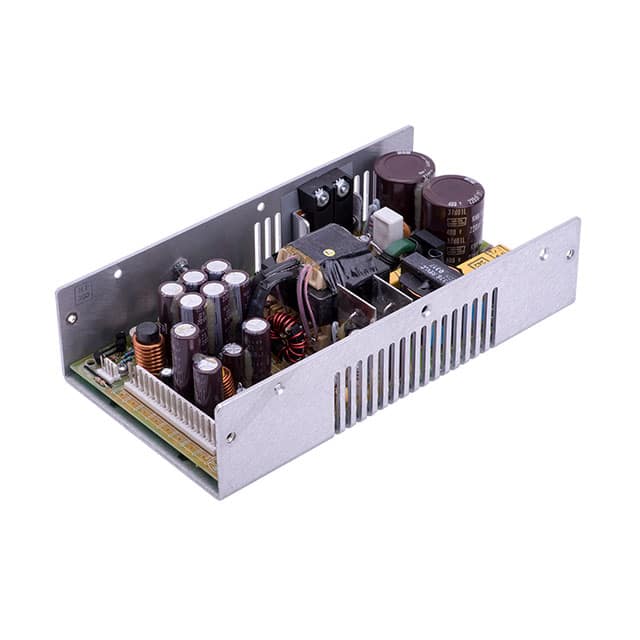

The SL Power Electronics GPC130EG is a 130W open frame AC DC converter designed for ITE (Commercial) applications. It accepts a wide input voltage range of 85-264 VAC and provides four output voltages: 5V, 24V, -15V, and 15V, with corresponding current ratings.
Key electrical specifications include a continuous output power of 100W and a peak power of 165W. The converter boasts 70% efficiency at full load and nominal input voltage. It offers features such as adjustable output voltage (±5%), remote sense on output 1, and overload protection including short circuit protection. The operating temperature range is 0°C to 50°C with derating.
Mechanically, the GPC130EG is designed for chassis mounting with dimensions of 215.9mm x 114.3mm x 50.8mm. It is CE approved. The unit includes thermal shutdown protection and a power fail signal.
Environmental compliance includes RoHS3 compliance, REACH unaffected status, and an MSL of 1 Unlimited. This converter is suitable for various commercial applications requiring reliable power conversion.
The GPC130EG offers 100W continuous output power, 165W peak output power, and 130W with 26 cfm air flow.
The GPC130EG accepts an AC input voltage range of 85-264 Vac and a frequency range of 47-63 Hz.
The GPC130EG provides four output voltages: 5V, 24V, -15V, and 15V.
The GPC130EG is designed for operation from 0°C to 50°C at full rated output power, with derating required above 50°C.
Yes, the GPC130EG is RoHS3 Compliant.
