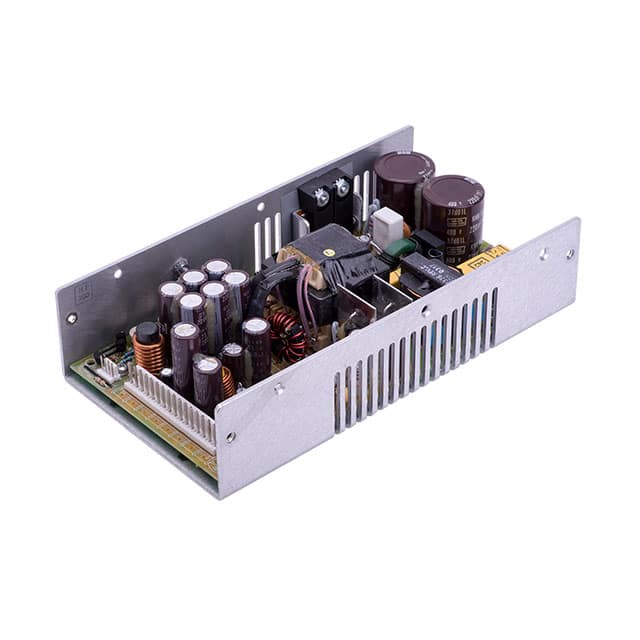

The SL Power Electronics GPC130E is a 130W open frame AC DC converter designed for commercial applications. It accepts a wide range of input voltages from 85 to 264 VAC, making it suitable for global use.
This converter provides four outputs: 5V at 16A, 24V at 3.5A, -15V at 1.2A, and 15V at 1.2A. Key electrical specifications include 70% efficiency and a hold-up time of 20ms. It is fully protected against short circuit and overload conditions.
The GPC130E features adjustable output voltage, remote sense capability, and universal input. It is designed for chassis mounting and operates within a temperature range of 0°C to 50°C with derating. The unit is approved by CE.
This power supply is suitable for ITE (Commercial) applications and offers features like thermal shutdown and power fail signal for reliable operation.
The GPC130E provides four outputs: +5V at 16A, +24V at 3.5A, -15V at 1.2A, and +15V at 1.2A.
The input voltage range is 85-264VAC single phase, 47-63 Hz.
The unit is fully protected against short circuit and output overload. Overvoltage protection is set at 124%±12% typical. Thermal shutdown is also standard.
The operating temperature range is 0°C to 50°C with derating.
The RoHS status is listed as non-compliant.
Chassis mount.
