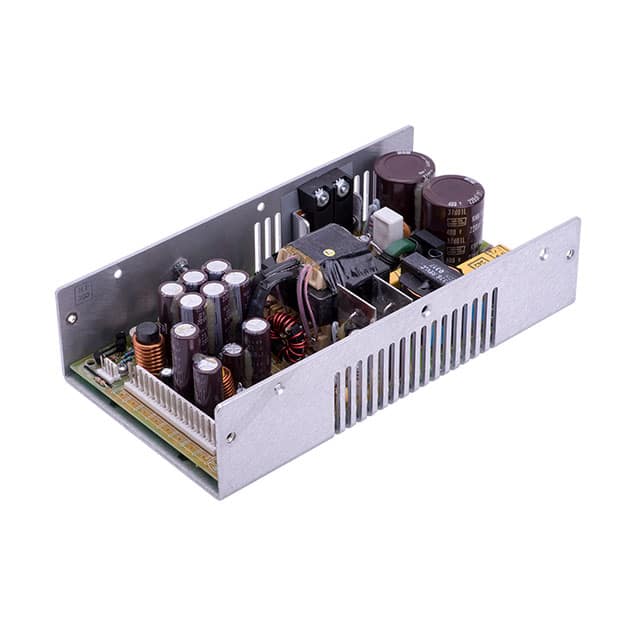

The SL Power Electronics GPC130CG is a 130 Watt open frame AC/DC power supply designed for ITE (Commercial) applications. It accepts a wide input voltage range of 85-264 Vac and provides four distinct output voltages: 5V, 12V, -15V, and 15V, with corresponding current ratings.
Key electrical specifications include a continuous output power of 100W and a peak output power of 165W. The unit offers 70% efficiency at full load and nominal input voltage. It is protected against short circuit and output overload conditions, with automatic recovery. Overvoltage protection is provided on the main outputs, typically at 124% ± 12%.
This power supply features a chassis mount type and measures 215.9mm x 114.3mm x 50.8mm. It operates within a temperature range of 0°C to 50°C with derating. Additional features include adjustable output voltage and remote sense capability on output 1. The unit is CE approved.
85-264 Vac, 47-63 Hz single phase.
130W continuous (165W peak for 60s max, 10% duty cycle; 130W with 26 cfm airflow).
Output 1: 5V/16A, Output 2: 12V/5A, Output 3: -15V/1.2A, Output 4: +15V/1.2A.
Short circuit protection (cycling type on outputs 1&2, foldback on outputs 3&4), overvoltage protection (124%±12% typical on main outputs), thermal shutdown, and input fuse.
0°C to 50°C with derating.
Open frame, chassis mount.
215.9 mm length, 114.3 mm width, 50.8 mm height.
