| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Overload Protection | |
| Power (Watts) | |
| SVHC Present | |
| Temperature Coefficient | |
| Turn On Time | |
| Type | |
| Voltage | |
| Width |

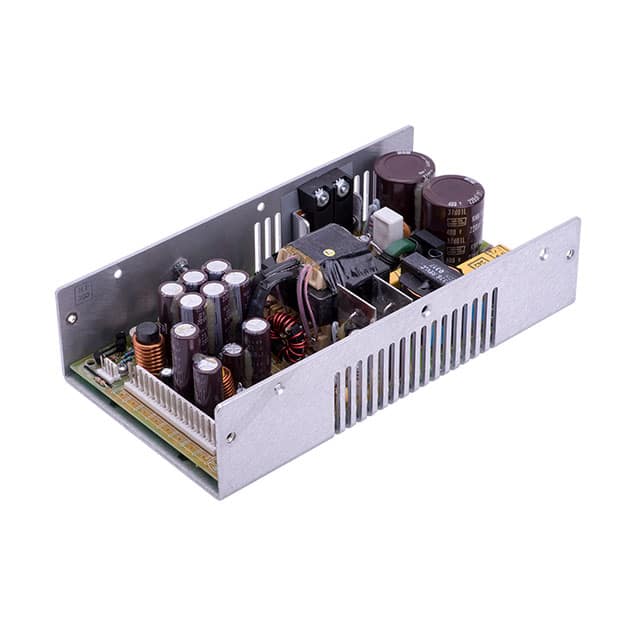

The SL Power Electronics GPC130C is a 130-watt global performance switcher designed as an AC/DC converter. It operates with a wide-range AC input from 85 to 264 Vac, making it suitable for global use. This open-frame unit offers four distinct outputs: 5V, 12V, +15V, and -15V, with current ratings of 16A, 5A, 1.2A, and 1.2A respectively.
Key features include adjustable output voltage (±5%), remote sense capability on the main output, and an efficiency of 70%. The converter provides overload and overvoltage protection, along with thermal shutdown for enhanced reliability. It is designed for chassis mounting and operates within a temperature range of 0°C to 50°C, with derating at higher temperatures.
Approved by CE, the GPC130C is suitable for ITE (Commercial) applications. Its robust design includes features like automatic recovery from faults and a minimum hold-up time of 20 ms. The dimensions are 215.9mm x 114.3mm x 50.8mm.
This power supply is built to meet stringent standards, offering reliable power conversion for various commercial electronic systems. Its universal input and multiple outputs provide flexibility for diverse design requirements.
The GPC130C provides four outputs: 5V at 16A, 12V at 5A, -15V at 1.2A, and 15V at 1.2A.
The GPC130C accepts a universal AC input of 85-264 Vac at 47-63 Hz single phase.
The GPC130C provides 100W continuous output power, 165W peak (60 seconds maximum duration, 10% duty cycle), and 130W with 26 cfm airflow.
The GPC130C operates from 0°C to 50°C at full rated output power.
The GPC130C includes short circuit and output overload protection (cycling power limit on outputs 1 and 2, foldback on outputs 3 and 4), overvoltage protection at 124% ± 12% typical on main outputs, thermal shutdown, and an internal AC fuse.
The GPC130C provides a minimum hold-up time of 20 ms from loss of AC input at full load and nominal line (115 Vac).
The maximum input current is 3.5A at 120 Vac, 60 Hz with full rated output load.
