| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Type | |
| Length | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Power (Watts) | |
| Region Utilized | |
| Voltage | |
| Width |

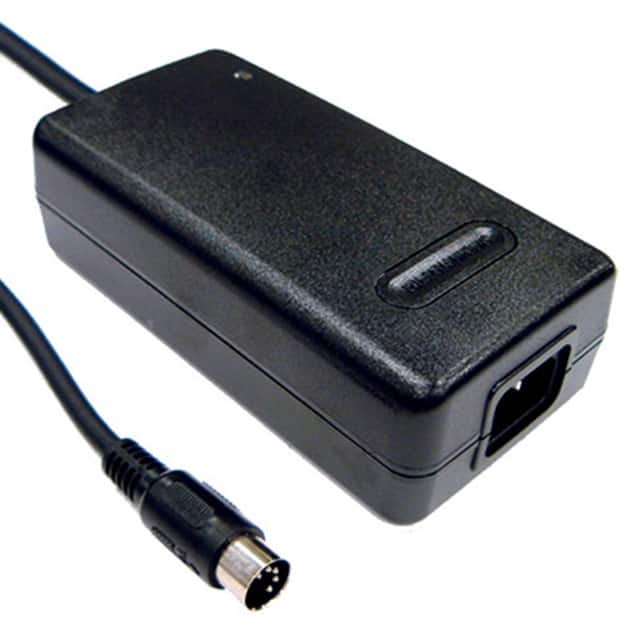

The Mean Well USA GP50A13A-R1B is a versatile AC/DC desktop adapter designed for ITE (Commercial) applications. It provides multiple output voltages of 5V, 12V, and -5V, with a total power output of 47W. The adapter operates internationally, accepting an input voltage range of 100-240 VAC and featuring an IEC 320-C14 input connector.
This unit meets Level VI efficiency standards and has a low no-load power consumption of 300mW maximum. Its operating temperature range is from -20°C to 70°C. The physical dimensions are 146.0mm in length, 75.5mm in width, and 43.0mm in height.
Compliance is indicated by approval agencies including CBE, CE, cULus, and GS. The RoHS status is RoHS3 Compliant, and it has a Moisture Sensitivity Level (MSL) of 1. The adapter utilizes a DIN, 5-pin output connector and requires a separate power cord.
The GP50A13A-R1B offers output voltages of 5V, 12V, and -5V.
The total power output for this adapter is 47W.
The adapter accepts an input voltage range of 100-240 VAC.
The operating temperature range is -20°C to 70°C.
Yes, it meets Level VI efficiency standards.
It uses an IEC 320-C14 input connector.
Yes, the RoHS status is RoHS3 Compliant.
