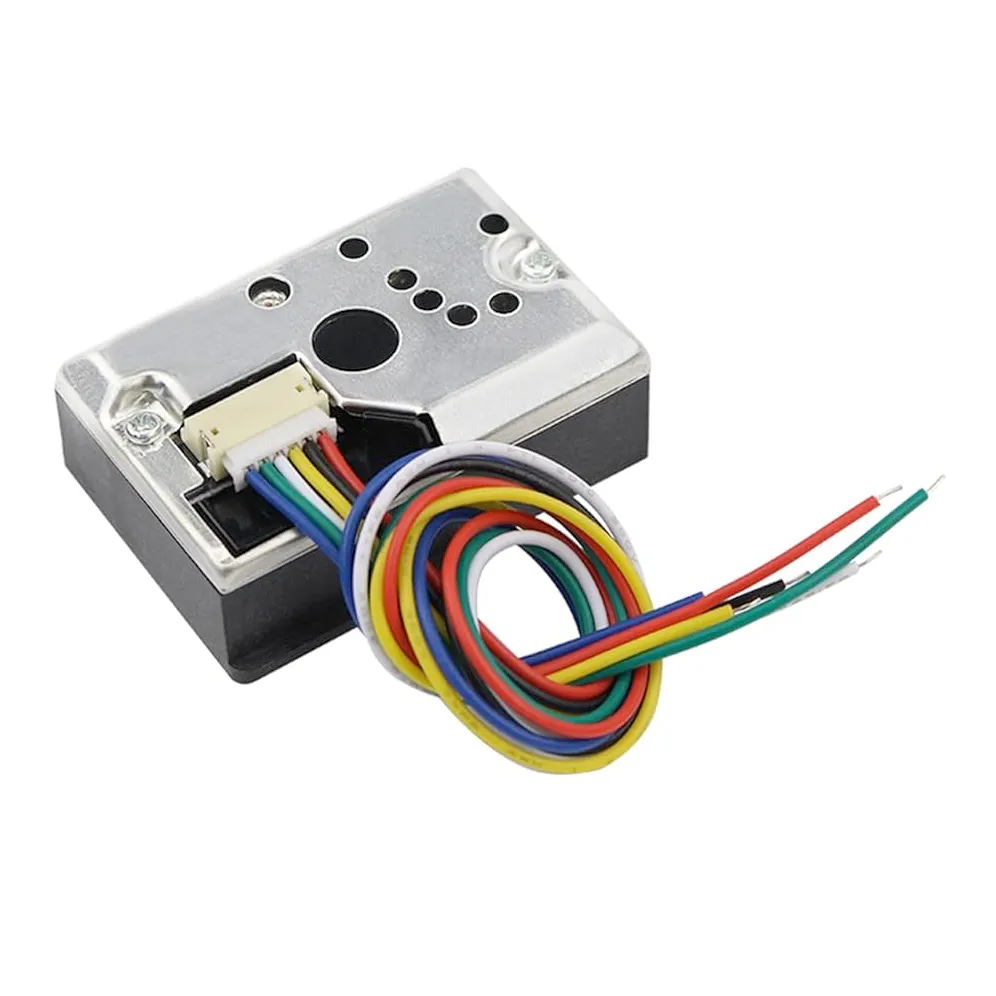

The Sharp GP2Y1010AU0F is an optical air quality sensor that detects fine dust particles using an infrared LED and phototransistor. It measures the reflected light from airborne particles, making it suitable for applications like air purifiers and HVAC systems. The sensor provides an analog voltage output that is proportional to the dust density, with a detection range of 0 to 0.5 mg/m³.
Key features include infrared-based detection, analog voltage output, and high sensitivity capable of detecting very fine particles like cigarette smoke. It operates with a low current consumption of up to 20 mA and a typical operating voltage range of 4.5V to 5.5V. The sensor's compact dimensions of 46.0 x 30.0 x 17.6 mm facilitate integration into various microcontroller-based air quality systems.
This sensor is widely used in air purifiers, HVAC systems, and environmental monitoring for real-time air quality detection. Its design allows it to distinguish between smoke and house dust by measuring the photometry of a single pulse. The operating temperature range is -10°C to 65°C.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.50 | $1.50 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The GP2Y1010AU0F operates between 4.5V and 5.5V.
The detection range is up to 0.5 mg/m³.
The sensor provides an analog voltage output.
The dimensions are 46.0 x 30.0 x 17.6 mm.
