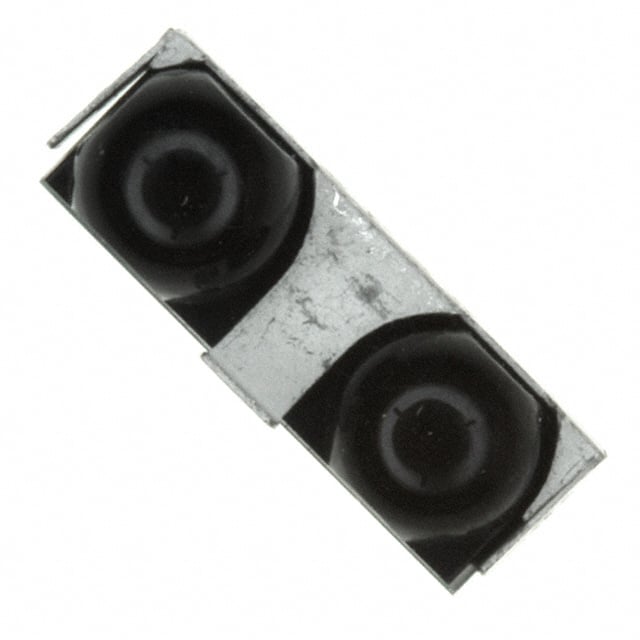

GP2W1001YP0F The Sharp Microelectronics GP2W1001YP0F is an IrDA Transceiver Module with a data rate of 115.2kbs. It operates within a voltage range of 2.7V to 5.5V and has an operating temperature range of -10°C to 70°C.
Mfr Part #:

GP2W1001YP0F

Available from 1 distributors
Mfr Name: Sharp Microelectronics
Sharp Microelectronics
The Sharp Microelectronics GP2W1001YP0F is an IrDA Transceiver Module with a data rate of 115.2kbs. It operates within a voltage range of 2.7V to 5.5V and has an operating temperature range of -10°C to 70°C.
✓ Total Stock: 100 pcs
$ Price Range: $1.50

GP2W1001YP0F Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
100 pcs
On Request
100 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

GP2W1001YP0F Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Data Rate
Idle Current, Typ @ 25°C
Lead Spacing
Link Range, Low Power
Operating Temperature
Operating Voltage
Orientation
Shutdown
Standards
Tape & Reel
Voltage
View Similar Products (0)

GP2W1001YP0F Description

Short technical summary and product information.

The Sharp Microelectronics GP2W1001YP0F is an IrDA Transceiver Module designed for serial infrared communication. It supports a data rate of 115.2kbs (SIR) and operates within a voltage supply range of 2.7V to 5.5V. The module features a low power idle current of 200 nA at 25°C and includes a shutdown mode.



With an operating temperature range of -10°C to 70°C, this module is suitable for various applications. Its compact size of 10.0mm x 4.4mm x 3.5mm and side view orientation make it adaptable for integration into different designs. The link range for low power operation is specified as 20cm to 1m, adhering to the IrPHY 1.4 standard.



This IrDA Transceiver Module is supplied in a 10SMD package, typically on tape and reel. Its specifications make it a component for systems requiring short-range, point-to-point wireless data transfer.

GP2W1001YP0F Quick Information

Product Type: IrDA Transceiver Module
Canonical Name: Sharp Microelectronics GP2W1001YP0F IrDA Transceiver Module
Subcategory: IrDA Transceiver Modules

GP2W1001YP0F Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

GP2W1001YP0F Estimated Pricing

Qty Low High
1+ $1.50 $1.50

Estimated market price range - modelled values for guidance only, not live distributor offers.

GP2W1001YP0F Features

  • IrDA Transceiver Module with 115.2kbs data rate.
  • Operates from 2.7V to 5.5V supply voltage.
  • Wide operating temperature range of -10°C to 70°C.
  • Low idle current of 200 nA at 25°C.
  • Compact 10SMD package on tape and reel.

GP2W1001YP0F Applications

  • Used for short-range serial data transfer.
  • Suitable for point-to-point communication.
  • Integrates into embedded systems.
  • Enables wireless data links.

GP2W1001YP0F FAQs

5 frequently asked questions generated from this part’s specifications.
What is the operating voltage range of the GP2W1001YP0F?

The operating voltage range is 2.7V to 5.5V.

What is the data rate supported by the GP2W1001YP0F?

The data rate is 115.2 kbps.

What is the size of the GP2W1001YP0F module?

The size is 10.0mm x 4.4mm x 3.5mm.

What is the link range of the GP2W1001YP0F in low power mode?

The link range is 20cm in low power mode and up to 1 meter.

Does the GP2W1001YP0F comply with any standards?

Yes, it complies with IrPHY 1.4 standards.
