| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Type | |
| Length | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Power (Watts) | |
| Region Utilized | |
| Voltage | |
| Width |

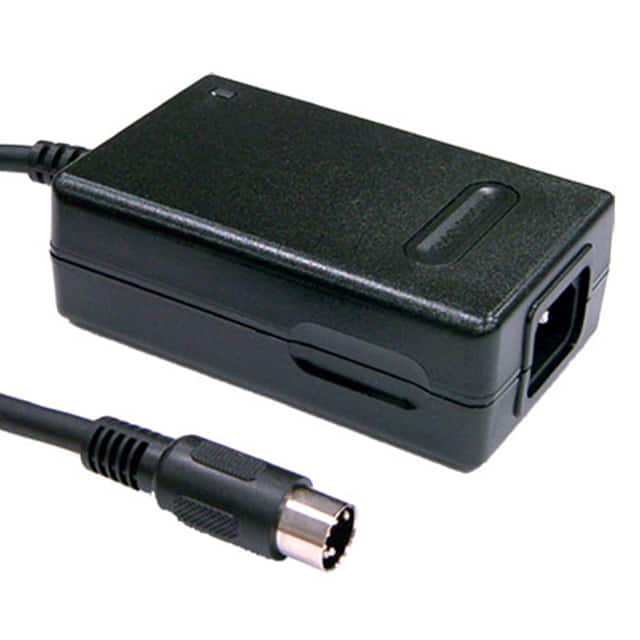

The Mean Well USA GP25A14E-R1B is a versatile AC/DC desktop adapter designed for commercial ITE applications. It provides a total power output of 29W, featuring multiple voltage outputs including +5VDC, +15VDC, and -15VDC, with corresponding current ratings of 2.5A, 0.8A, and 0.3A.
This adapter operates with an input voltage range of 100-240 VAC and meets Level VI efficiency standards, ensuring energy savings. It is equipped with an IEC 320-C14 input connector and a 5-pin DIN output connector. The operating temperature range is from -20°C to 70°C.
With its compact dimensions of 107.5mm x 67.0mm x 36.0mm, the GP25A14E-R1B is suitable for various space-constrained designs. It is approved by CBE, CE, cULus, and GS agencies, indicating compliance with international safety standards. The adapter is designed for international use and comes with a cord length of 1.53m (60.2").
100-240 VAC.
+5VDC at 2.5A, +15VDC at 0.8A, -15VDC at 0.3A.
-20°C to 70°C.
Level VI.
Desktop (Class I) form factor, dimensions 107.5mm x 67.0mm x 36.0mm.
CBE, CE, cULus, GS.
DIN, 5 Pin.
