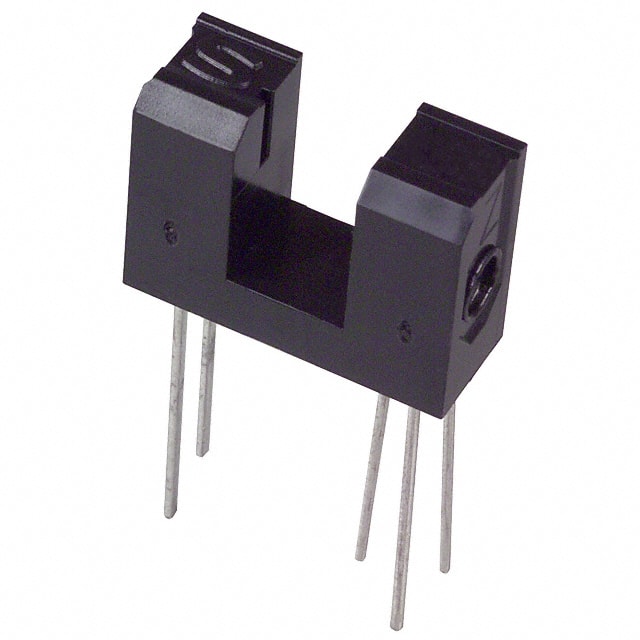

GP1A53HRJ00F The Sharp Microelectronics GP1A53HRJ00F is a transmissive photointerrupter with a 5mm gap. It features a PCB mount package and operates within a 4.5V to 17V range.
Mfr Part #:

GP1A53HRJ00F

Available from 1 distributors
Mfr Name: Sharp Microelectronics
Sharp Microelectronics
The Sharp Microelectronics GP1A53HRJ00F is a transmissive photointerrupter with a 5mm gap. It features a PCB mount package and operates within a 4.5V to 17V range.
✓ Total Stock: 4,000 pcs
$ Price Range: $0.50

GP1A53HRJ00F Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Smaxon Electronics ✓
Non-Authorised Inventory information
4,000 pcs
On Request
4000 pcs On Request 1 On Request On Request 14+ On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

GP1A53HRJ00F Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current
Forward Voltage
Lead Spacing
Mounting Type
Output Configuration
Response Time
Reverse Current
Sensing Distance
Sensing Method
Storage Temperature
Tape & Reel
Voltage
View Similar Products (0)

GP1A53HRJ00F Description

Short technical summary and product information.

The Sharp Microelectronics GP1A53HRJ00F is a transmissive photointerrupter designed for general-purpose detection of object presence or motion. It features an OPIC output and a vertical slit for alternate motion detection.



Key specifications include a 5mm gap width and a 0.5mm slit width on the detector side. The device operates with a supply voltage ranging from 4.5V to 17V and offers a fast response time of 1µs. The output is low level when the optical path is intercepted.



This photointerrupter is suitable for applications such as printers, FAX machines, and optical storage units. It comes in a compact PCB mount package with through-hole mounting.



The component is lead-free and RoHS directive compliant. Its dimensions are 13.7mm x 10mm x 5.2mm, with a product mass of approximately 0.7g.

GP1A53HRJ00F Quick Information

Product Type: Photointerrupter
Canonical Name: Transmissive Photointerrupter
Subcategory: Slot Type

GP1A53HRJ00F Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Lead free

GP1A53HRJ00F Estimated Pricing

Qty Low High
1+ $0.50 $0.50

Estimated market price range - modelled values for guidance only, not live distributor offers.

GP1A53HRJ00F Features

  • Transmissive photointerrupter with OPIC output.
  • 5mm gap width and 0.5mm slit width.
  • Operates from 4.5V to 17V supply voltage.
  • Fast response time of 1µs.
  • Through-hole PCB mount package.

GP1A53HRJ00F Applications

  • General object presence detection.
  • Alternate motion detection.
  • Used in printers and FAX machines.
  • Suitable for optical storage units.

GP1A53HRJ00F FAQs

4 frequently asked questions generated from this part’s specifications.
What is the sensing distance of the GP1A53HRJ00F photointerrupter?

The sensing distance is 5mm.

What is the operating voltage range for the GP1A53HRJ00F?

The operating supply voltage ranges from 4.5V to 17V.

What is the response time of the GP1A53HRJ00F?

The response time is 1µs.

Is the GP1A53HRJ00F RoHS compliant?

Yes, the GP1A53HRJ00F is RoHS3 Compliant.
