| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
478 pcs
|
478 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actuator Marking | |
| Actuator Material | |
| Actuator Type | |
| Circuit | |
| Color | |
| Contact Resistance | |
| Current Rating | |
| Current Rating (Amps) | |
| Features | |
| Ingress Protection | |
| Insulation Resistance | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Operating Temperature | |
| Switch Function | |
| Termination Style | |
| Type | |
| Voltage Rating |

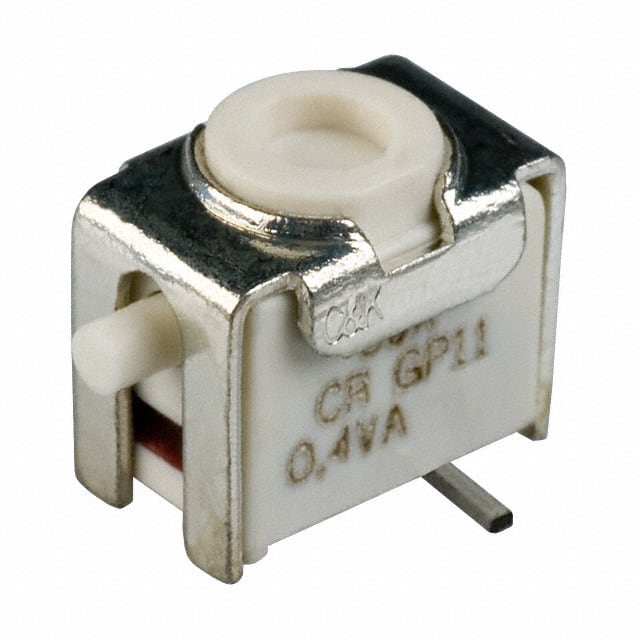

The C&K GP11MSV1BE is a sealed ultraminiature pushbutton switch from the GP Series. Designed for reliability in harsh conditions, it is suitable for instrumentation and equipment in the medical and telecommunications industries.
This switch features a SPST-NO (Single Pole Single Throw Normally Open) circuit with a contact rating of 0.4VA maximum at 20VAC or DC. It has a mechanical and electrical life of 40,000 make-and-break cycles at full load. The contact resistance is typically below 50 mΩ, and insulation resistance is a minimum of 10^9 Ω.
The operating temperature range is -40°C to 85°C. The switch has an Ingress Protection rating of IP57, offering protection against harmful dust and temporary immersion.
It is designed for surface mount, right angle, vertical mounting with gull wing termination style. The housing and base are made of flame-retardant, heat-stabilized glass-filled nylon (UL 94V-0), and the actuator is also made of flame-retardant glass-filled nylon with an internal o-ring seal.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The contact rating is 0.4 VA maximum at 20 VAC or DC.
The operating temperature range is -40°C to 85°C.
The ingress protection rating is IP57, providing protection against dust and temporary immersion.
The mounting type is Surface Mount, Right Angle, Vertical.
The circuit configuration is SPST-NO (Single Pole Single Throw Normally Open).
The voltage rating is 20 V.
