| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Input Frequency | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Current | |
| Output Voltage | |
| Power (Watts) | |
| Relative Humidity | |
| Temperature Coefficient | |
| Type | |
| Voltage | |
| Weight | |
| Width |

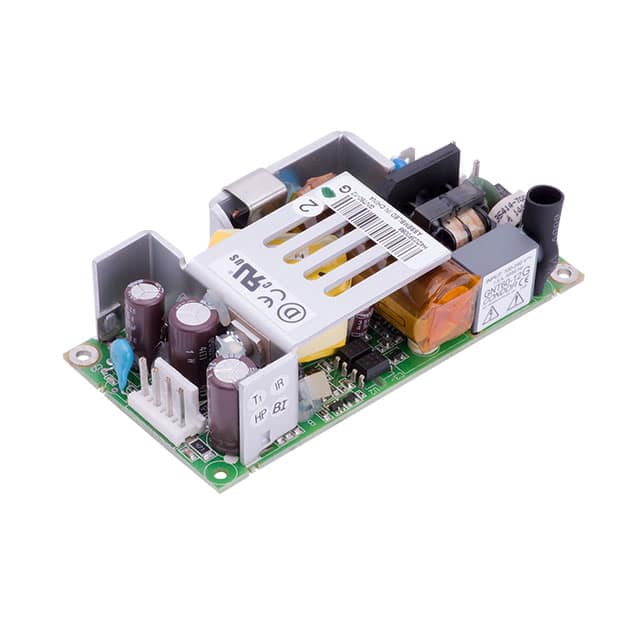

The SL Power Electronics GNT60-15G is an open frame AC/DC power supply designed for ITE (Commercial) applications. It offers a single 15V output with a current rating of 4A, delivering up to 60W of power. The unit accepts a universal input voltage range of 100-240 VAC.
Key electrical specifications include an efficiency of 80% and an isolation voltage of 4kV (input to output). The power supply is protected against overvoltage and short circuits. It operates within a temperature range of 0°C to 70°C with derating.
Designed for chassis mounting, the GNT60-15G has dimensions of 101.6mm x 50.8mm x 24.6mm. It complies with CE, cURus, and TUV safety standards. The series is also available in RoHS compliant models.
The input voltage range is 85-264 VAC (universal input, nominal 100-240 VAC).
The main output provides 15V at 4A maximum.
The operating ambient temperature range is 0°C to 70°C, with full load up to 50°C and derating to 50% load at 70°C.
The dimensions are 101.6mm x 50.8mm x 24.6mm (4.00" x 2.00" x 0.97").
It is approved to UL/EN/IEC 60601-1 (medical) and UL/EN/IEC 60950-1 (ITE) standards, with CSA22.2 equivalents.
The typical efficiency is 80% at 120 VAC and 60W output.
