| Category | |
| Manufacturer Name | |
| Applications | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Type | |
| Voltage | |
| Width |

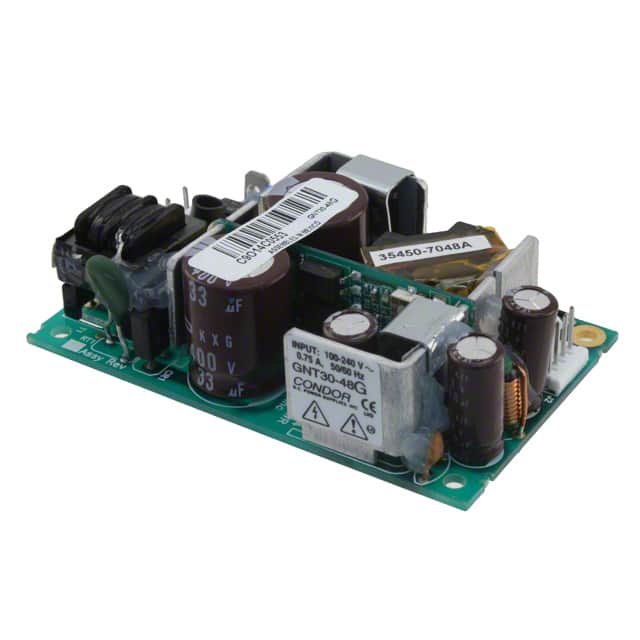

The GNT30-48G is an AC/DC converter from SL Power Electronics Manufacture of Condor/Ault Brands. It delivers a single 48V output at 30W with a current rating of 625 mA. The converter achieves 78% efficiency and provides 4 kV isolation.
This unit features adjustable output and universal input, making it suitable for a variety of commercial ITE applications. It operates over a temperature range of 0°C to 70°C with derating.
The mechanical dimensions are 80.0 mm in length, 50.0 mm in width, and 25.0 mm in height.
The output voltage is 48V DC.
The power rating is 30W.
The operating temperature range is 0°C to 70°C with derating.
The efficiency is 78%.
The dimensions are 80.0 mm length, 50.0 mm width, and 25.0 mm height.
