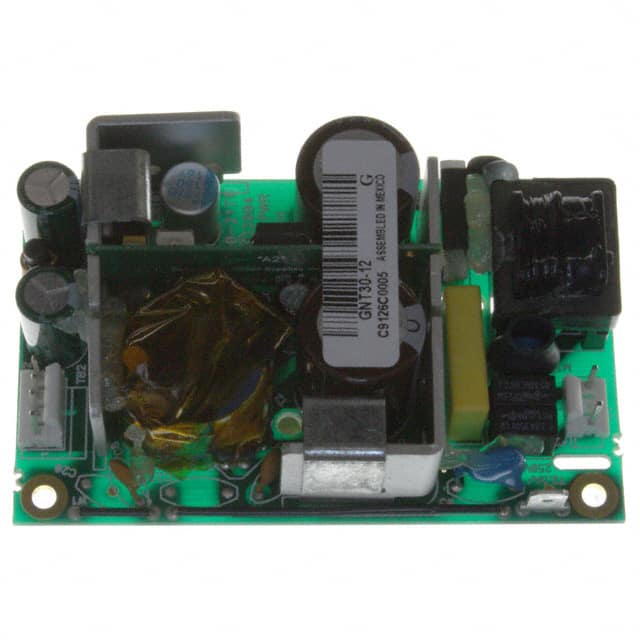

The SL Power Electronics GNT30-12G is an open frame AC/DC converter designed for various applications. It delivers 30W of power with a single 12V output and accepts a wide input voltage range of 90 to 264V.
Key electrical specifications include a current rating of 2.5A and an efficiency of 78%. The converter also features adjustable output and universal input capabilities. For thermal management, it operates within a temperature range of 0°C to 70°C with derating.
Mechanically, the unit has dimensions of 80.0mm x 50.0mm x 25.0mm. It is designed for chassis mounting and provides an isolation voltage of 4kV. The GNT30-12G is suitable for ITE (Commercial) applications.
The output voltage is 12V.
The power rating is 30W.
The input voltage range is 90 to 264V.
The operating temperature range is 0°C to 70°C with derating.
The dimensions are 80.0mm x 50.0mm x 25.0mm.
