| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Power | |
| Output Voltage | |
| Overload Protection | |
| Power (Watts) | |
| Relative Humidity | |
| Storage Temperature | |
| Temperature Coefficient | |
| Turn On Time | |
| Type | |
| Voltage |

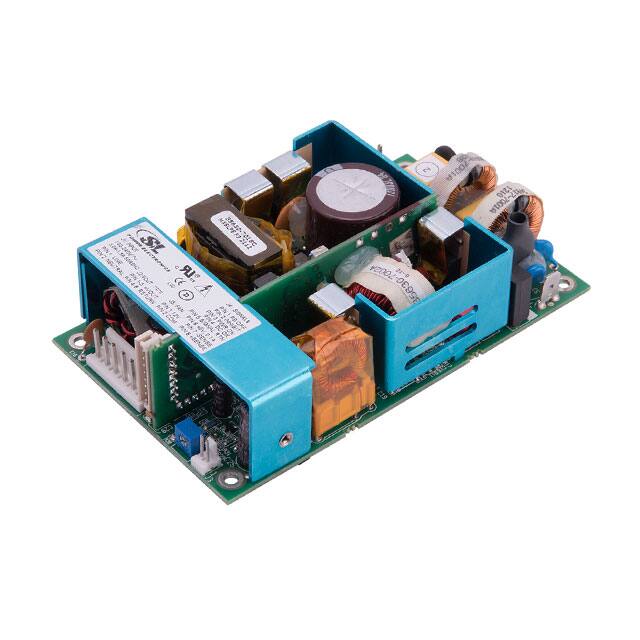

The SL Power GNT212G is a 200W open frame AC/DC power supply designed for ITE commercial applications. It accepts a wide input voltage range of 100-240 VAC and provides a single 12V output with a maximum current of 12.5A.
This power supply boasts high efficiency, reaching up to 90% typical at 230VAC. Key features include adjustable output voltage with ±5% capability, power factor correction (PFC), remote sense, and a standby output. The unit operates within a temperature range of 0°C to 70°C and has a compact size of 5.00" x 3.00" x 1.25".
Safety approvals include CE, cURus, and TUV, making it suitable for various commercial and industrial systems. The open frame construction allows for chassis mounting and efficient integration into larger equipment designs.
The GNT212G provides a nominal output voltage of 12V.
The maximum output current is 12.5A.
The GNT212G accepts an input voltage range of 100 to 240 VAC.
The operating temperature range is 0°C to 70°C.
The efficiency is typically 90% at 230VAC and 87% at 120VAC.
The GNT212G is designed for chassis mount.
