Mfr Part #:

GNSS4GBTSM

Name: GNSS4GBTSM
Brand: PCTEL, Inc.
SKU: GNSS4GBTSM

Mfr Name: PCTEL, Inc.

Description:

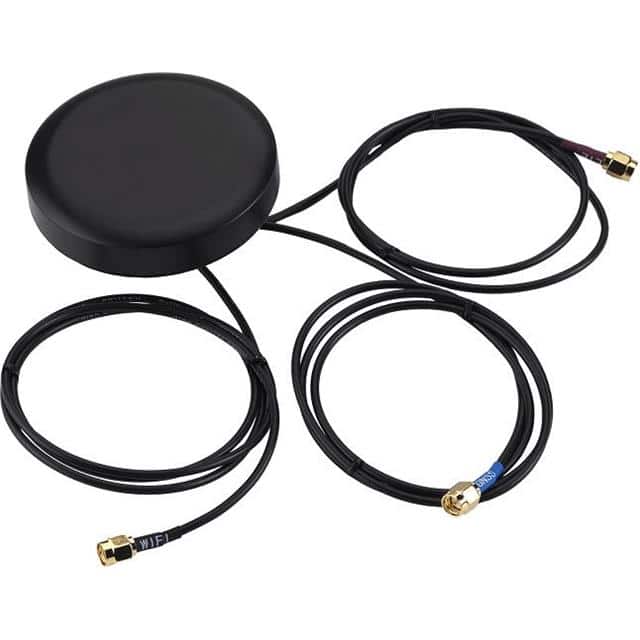

RF ANT 829MHZ MOD RP-SMA M STUD

Stock on Request

GNSS4GBTSM Description

Short technical summary and product information.

RF ANT 829MHZ MOD RP-SMA M STUD

Mfr Standard Lead Time: 12 weeks (varies by distributor)

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

Category	RF Antennas
Manufacturer Name	PCTEL, Inc.
Antenna Type	Module
Applications	2G, 3G, 5G, Bluetooth, Cellular, GNSS, GPS, ISM, LoRa, LPWAN, LTE, Wi-Fi
Features	Cable - 5m, LNA
Frequency (Center	829MHz, 1.575GHz, 1.596GHz, 1.602GHz, 2.205GHz, 2.44GHz
Frequency Group	UHF (300MHz ~ 1GHz), UHF (2GHz ~ 3GHz)
Frequency Range	698MHz ~ 960MHz, 1.574GHz ~ 1.576GHz, 1.71GHz ~ 2.7GHz, 2.4GHz ~ 2.4835GHz
Gain	5dBi, 5dBic, 3dBi
Height (Max)	5.906" (150.00mm)
Ingress Protection	IP67
Mounting Type	Stud, Through Hole
Number of Bands	5
RF Family	Cellular, Navigation, WiFi
Termination	RP-SMA Male (1), SMA Male (2)
VSWR	2
