| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
8,580 pcs
|
8580 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Automotive Grade | |
| Connector Type | |
| Contact Finish | |
| Contact Material | |
| Contact Resistance | |
| Current Rating | |
| Dielectric Withstanding Voltage | |
| Features | |
| Housing Material | |
| Industrial Grade | |
| Insulation Resistance | |
| LED Color | |
| Lead Style | |
| Mating Cycles | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Number of Ports | |
| Number of Positions | |
| Number of Rows | |
| Operating Temperature Range | |
| Orientation | |
| Shielding | |
| Tab Direction | |
| Tape & Reel | |
| Termination | |
| Termination Style | |
| Voltage Rating |

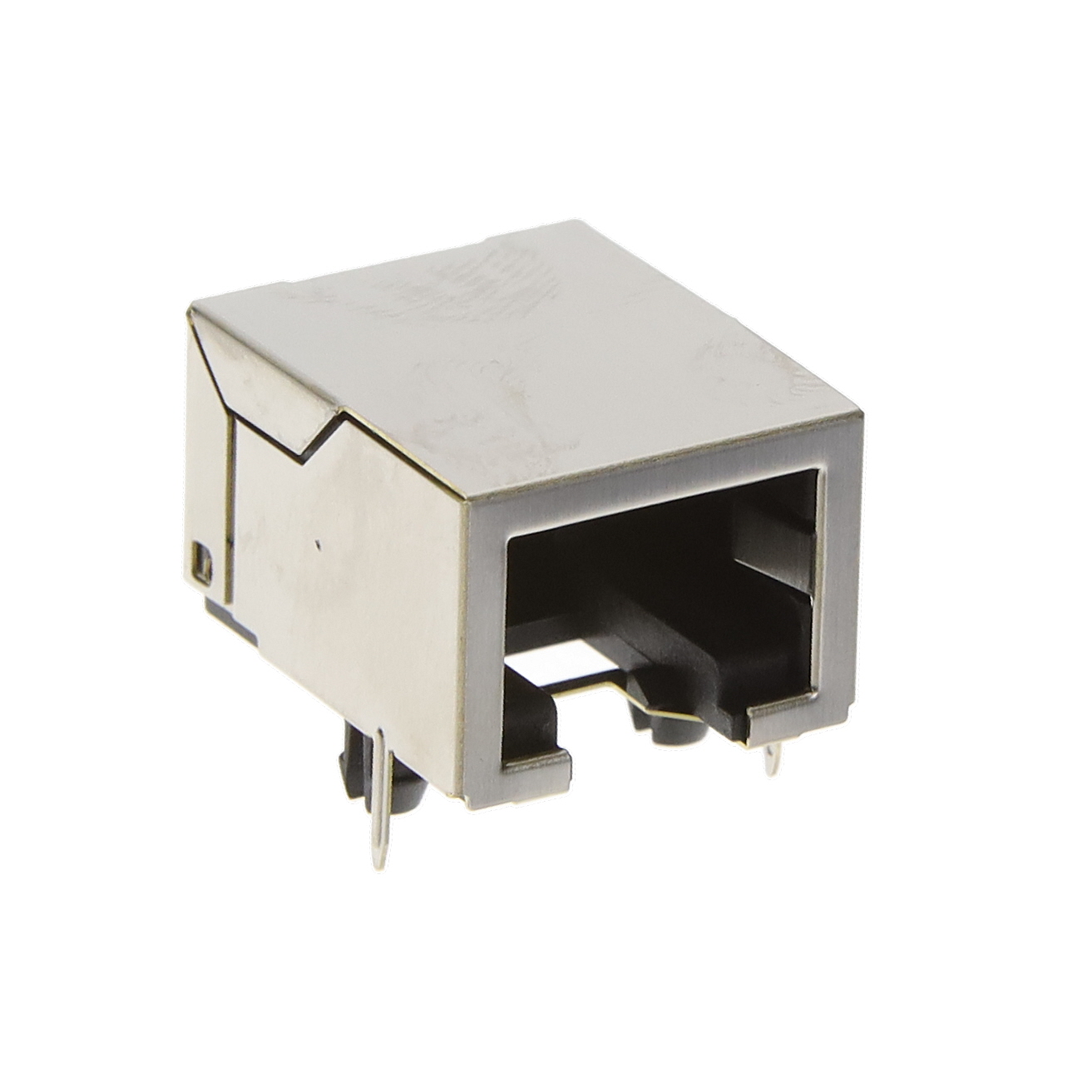

The Kycon GMX-SMT2-S-88-TR is a surface mount modular jack from the GMX-SMT2 series, designed for RJ45 Ethernet applications in 8p8c configuration. It features a shielded design with a copper alloy nickel-plated shield for EMI/RFI protection, and a board lock for secure mounting. The housing is made of high temperature thermoplastic rated UL 94V-0, black color, making it reflow compatible.
Electrically, the jack is rated for 1.0A current and 125V DC voltage, with insulation resistance of 500 MΩ minimum and dielectric withstanding voltage of 1000V RMS. Contact resistance is 20 mΩ maximum. Contacts are phosphor bronze with gold plating, ensuring reliable connectivity over 1000 mating cycles minimum. Operating temperature range is -40°C to +85°C.
Termination is solder with right angle orientation. The part is packaged in tape and reel (TR suffix). It is RoHS3 and REACH compliant, with UL file E134345 and CSA LR78160 certifications. Suitable for low profile PC add-on board applications and other networking equipment.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.85 | $2.85 |
| 10+ | $2.42 | $2.42 |
| 25+ | $2.27 | $2.27 |
| 50+ | $2.16 | $2.16 |
| 130+ | $2.02 | $2.02 |
| 260+ | $1.93 | $1.93 |
| 390+ | $1.87 | $1.87 |
| 650+ | $1.81 | $1.81 |
| 910+ | $1.76 | $1.76 |
| 1,300+ | $1.72 | $1.72 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
8 positions and 8 contacts (8p8c, RJ45 Ethernet).
Rated at 1.0A and 125V DC.
Surface mount with right angle orientation.
Yes, it is shielded with a copper alloy nickel-plated shield for EMI/RFI protection.
-40°C to +85°C.
Phosphor bronze contacts with gold plating.
Yes, RoHS3 compliant and REACH unaffected per datasheet.
