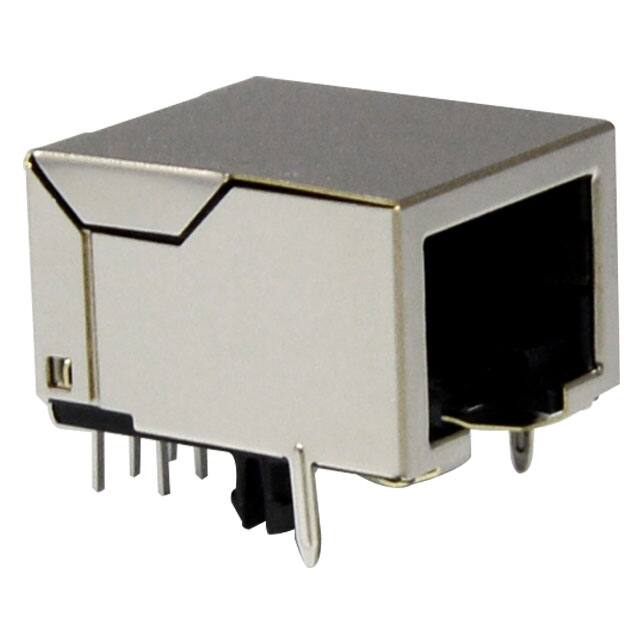

GMX-S-1010 Kycon GMX-S-1010 is a shielded 10-position 10-contact (10p10c) modular jack with through hole mounting, right angle orientation, and gold-plated phosphor bronze contacts.
Mfr Part #:

GMX-S-1010

Available from 1 distributors
Mfr Name: Kycon Inc.
Kycon Inc.
Kycon GMX-S-1010 is a shielded 10-position 10-contact (10p10c) modular jack with through hole mounting, right angle orientation, and gold-plated phosphor bronze contacts.
✓ Total Stock: 200 pcs
$ Price Range: $1.15 - $2.01

GMX-S-1010 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
AA2DE ✓
Non-Authorised Inventory information
200 pcs
On Request
200 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

GMX-S-1010 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Material
Features
LED Color
Lead Style
Mounting Type
Number of Ports
Number of Positions
Number of Rows
Orientation
Shielding
Tab Direction
Termination
Termination Style
View Similar Products (0)

GMX-S-1010 Description

Short technical summary and product information.

The Kycon GMX-S-1010 is a shielded modular jack designed for 10p10c (RJ50) connectors. It features a through hole mounting style with a right angle (90°) orientation, making it suitable for low-profile PCB applications where space is constrained. The jack includes a board lock feature for secure attachment during soldering.



This connector is shielded to provide electromagnetic interference (EMI) protection, and the contacts are made of phosphor bronze with a gold finish for reliable conductivity and corrosion resistance. The tab direction is down, and the part does not contain an LED indicator.



The GMX-S-1010 is a single-port, single-row jack with 10 positions and 10 contacts. It is RoHS3 compliant and has an MSL rating of 1 (unlimited).

GMX-S-1010 Quick Information

Product Type: Modular Connector Jack
Canonical Name: Kycon GMX-S-1010 Shielded 10p10c (RJ50) Modular Jack, Through Hole, Right Angle
Subcategory: Shielded Jack

GMX-S-1010 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

GMX-S-1010 Estimated Pricing

Qty Low High
1+ $2.01 $2.01
10+ $1.70 $1.70
25+ $1.60 $1.60
50+ $1.52 $1.52
200+ $1.38 $1.38
400+ $1.31 $1.31
600+ $1.28 $1.28
1,000+ $1.23 $1.23
2,600+ $1.15 $1.15

Estimated market price range - modelled values for guidance only, not live distributor offers.

GMX-S-1010 Features

  • Shielded 10p10c (RJ50) modular jack.
  • Through hole mounting with right angle orientation.
  • Gold-plated phosphor bronze contacts.
  • Includes board lock for secure attachment.
  • RoHS3 compliant with MSL 1 rating.

GMX-S-1010 Applications

  • Used in networking and telecom equipment.
  • Ideal for low-profile PCB designs.
  • Suitable for data communication interfaces.
  • Applied in industrial control panels.

GMX-S-1010 FAQs

5 frequently asked questions generated from this part’s specifications.
What is the connector type of the GMX-S-1010?

The GMX-S-1010 is a modular jack (RJ50) with 10 positions and 10 contacts (10p10c).

Is the GMX-S-1010 shielded?

Yes, the GMX-S-1010 is a shielded modular jack.

What is the mounting type of the GMX-S-1010?

The GMX-S-1010 uses through hole mounting.

What is the orientation of the GMX-S-1010?

The GMX-S-1010 has a right angle (90°) orientation.

Does the GMX-S-1010 have an LED?

No, the GMX-S-1010 does not contain an LED.
