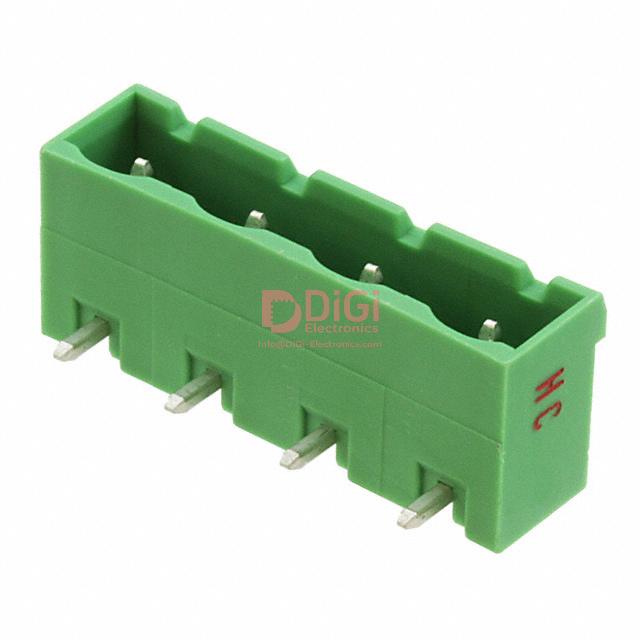

GMSTBA2,5HC/4-G-7,62 This Phoenix Contact terminal block header features 4 positions and a 7.62mm pitch. It is designed for through-hole mounting.
Mfr Part #:

GMSTBA2,5HC/4-G-7,62

Available from 1 distributors
Mfr Name: Phoenix Contact
Phoenix Contact
This Phoenix Contact terminal block header features 4 positions and a 7.62mm pitch. It is designed for through-hole mounting.
✓ Total Stock: 21 pcs
$ Price Range: $0.23

GMSTBA2,5HC/4-G-7,62 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
21 pcs
On Request
21 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

GMSTBA2,5HC/4-G-7,62 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Header Orientation
Lead Spacing
Lead Style
Mounting Type
Number of Levels
Number of Positions
Pitch
Positions Per Level
SVHC Present
Termination Style
View Similar Products (0)

GMSTBA2,5HC/4-G-7,62 Description

Short technical summary and product information.

The Phoenix Contact GMSTBA2,5HC/4-G-7,62 is a terminal block header with 4 positions, designed for robust electrical connections. It features a standard pitch of 7.62mm and a 90° right-angle orientation, making it suitable for various PCB layouts.



This header is rated for 16A (IEC) and 1kV (IEC) or 18.5A (UL), ensuring reliable performance in demanding applications. The through-hole mounting type and solder termination style provide a secure and permanent connection.



Part of the COMBICON GMSTBA series, this component is built for industrial environments. Its shrouded male pin design offers protection and ensures correct mating.



Key specifications include 4 positions per level, a single level design, and a bulk packaging method. The header orientation is 90°, right angle, with plug wire entry and solder termination.

GMSTBA2,5HC/4-G-7,62 Quick Information

Product Type: Terminal Block Header
Series: COMBICON GMSTBA
Canonical Name: Phoenix Contact GMSTBA2,5HC/4-G-7,62 Terminal Block Header
Subcategory: Headers, Plugs and Sockets

GMSTBA2,5HC/4-G-7,62 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Yes

GMSTBA2,5HC/4-G-7,62 Estimated Pricing

Qty Low High
1+ $0.23 $0.23

Estimated market price range - modelled values for guidance only, not live distributor offers.

GMSTBA2,5HC/4-G-7,62 Features

  • 4 position terminal block header.
  • 7.62mm pitch for PCB mounting.
  • 90° right-angle orientation.
  • Through hole mounting type.
  • Rated for 16A and 1kV.

GMSTBA2,5HC/4-G-7,62 Applications

  • Ideal for industrial control systems.
  • Suitable for power distribution boards.
  • Used in automation equipment.
  • General purpose PCB connections.

GMSTBA2,5HC/4-G-7,62 FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does the GMSTBA2,5HC/4-G-7,62 have?

It has 4 positions.

What is the pitch of this header?

The pitch is 7.62 mm.

What is the current rating of the GMSTBA2,5HC/4-G-7,62?

It is rated for 16 A (IEC) and 18.5 A (UL).

What is the voltage rating?

The voltage rating is 1 kV (IEC).

What is the mounting type?

Through hole mounting with solder termination.

How many levels does this header have?

It has 1 level.

What is the header orientation?

The header is oriented at 90° (right angle).
