GMS-100S 32A
Carlo Gavazzi
The Carlo Gavazzi GMS-100S 32A is a 3-pole manual motor starter with a 32A current rating and 690V voltage rating. It is designed for DIN rail mounting.
| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Approval Agency | |
| Breaker Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Illumination | |
| Mounting Type | |
| Number of Poles | |
| Voltage Rating |

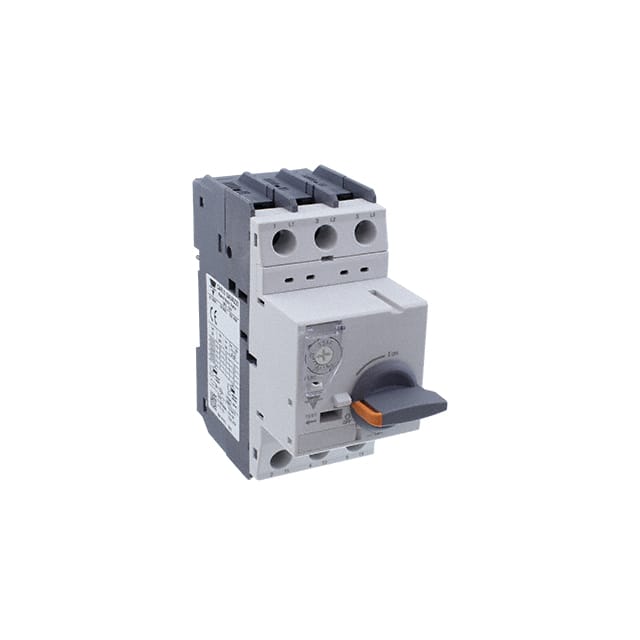

The Carlo Gavazzi GMS-32H 32A is a manual motor starter designed for efficient motor control and protection. This 3-pole device offers a current rating of 32A and a maximum voltage rating of 690V.
Key electrical specifications include a rated short-circuit breaking capacity of 50 kA at 400V AC, and rated operation power of 7.5 kW at AC-3, 230V and 15 kW at AC-3, 400V. The overload release current setting ranges from 22A to 32A, and it is phase failure sensitive. It also features thermal protection and no integrated under-voltage release.
Designed for ease of installation, the GMS-32H 32A features DIN rail mounting and a rotary actuator. Its robust construction ensures reliable performance in various industrial applications.
The current rating of the GMS-32H 32A is 32A.
The rated operating voltage for the GMS-32H 32A ranges from 208V to 690V.
The GMS-32H 32A has 3 poles.
The GMS-32H 32A is a Manual Motor Starter.
The GMS-32H 32A is designed for DIN Rail mounting.
The overload release current setting ranges from 22A to 32A.
The rated short-circuit breaking capacity is 50 kA at 400V AC.
