| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
43,347 pcs
|
43347 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
12,100 pcs
|
12100 pcs | On Request | 1 | On Request | On Request | 0.73118932 | On Request | On Request | |
|
28 pcs
|
28 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Capacitance | |
| Halogen Free | |
| Insulation Resistance | |
| Length | |
| Mounting Type | |
| Operating Temperature | |
| Tape & Reel | |
| Temperature Coefficient | |
| Thickness (Max) | |
| Tolerance | |
| Voltage | |
| Width |

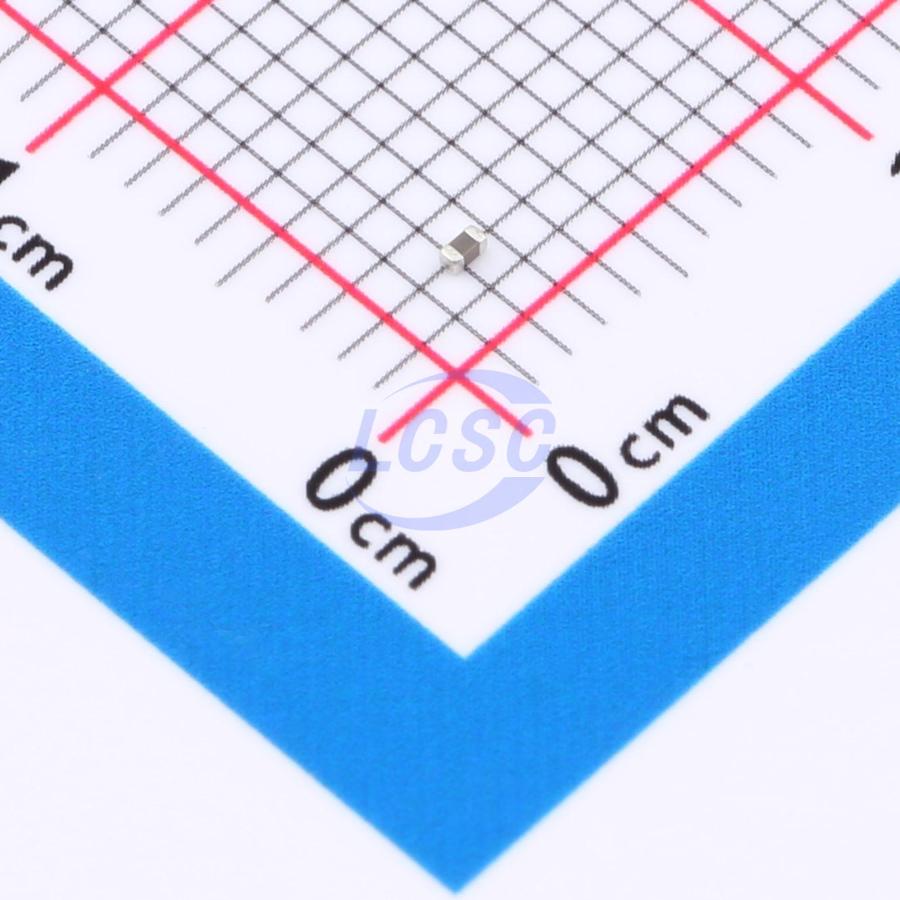

The Taiyo Yuden GMK105BJ104KV-F is a surface mount multilayer ceramic capacitor (MLCC) with a capacitance of 0.1 µF and a tolerance of ±10%. It is rated for 35 V DC operation and features an X5R temperature characteristic, providing stable performance over an operating temperature range of -55°C to +85°C (EIA).
This capacitor is housed in a compact 0402 (1005 Metric) package measuring 1.0 mm x 0.5 mm x 0.5 mm (nominal), with a terminal spacing of 0.25 mm. It is designed for reflow soldering and is supplied in tape and reel packaging (paper) with a standard quantity of 10,000 pieces.
Key electrical attributes include a maximum dissipation factor of 5% and a minimum insulation resistance of 500 MΩ·µF. The component is RoHS3 compliant, REACH unaffected, and halogen free, making it suitable for environmentally conscious designs. Typical applications include SMPS filtering and other general purpose decoupling and bypass circuits where a small footprint and reliable performance are required.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.12 | $0.12 |
| 10+ | $0.05 | $0.05 |
| 100+ | $0.04 | $0.04 |
| 500+ | $0.03 | $0.03 |
| 1,000+ | $0.03 | $0.03 |
| 2,500+ | $0.02 | $0.02 |
| 5,000+ | $0.02 | $0.02 |
| 10,000+ | $0.02 | $0.02 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
0.1 µF.
35 V DC.
X5R, with an operating temperature range of -55°C to +85°C (EIA).
±10%.
0402 (1005 Metric) surface mount package.
5% max.
500 MΩ·µF min.
