| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,796 pcs
|
1796 pcs | On Request | 1 | On Request | On Request | 2026-02-25 06:16:38 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Adjustment Type | |
| Capacitance Range | |
| Dielectric Material | |
| Features | |
| Height | |
| Insulation Resistance | |
| Length | |
| Mounting Type | |
| Operating Temperature | |
| Storage Temperature | |
| Voltage | |
| Width |

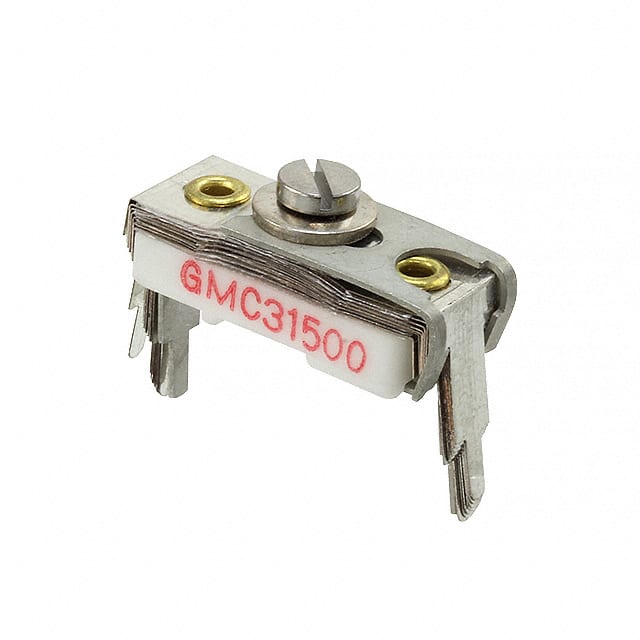

The GMC31500 is a mica dielectric compression trimmer capacitor from Sprague-Goodman, offering a capacitance range of 240 to 700 pF. It is rated for a working voltage of 175 VDC and a dielectric withstanding voltage of 350 VDC. The component features a high Q factor of at least 1000 at 1 MHz and an insulation resistance of 100,000 MΩ minimum at 25°C. Designed for through-hole mounting with top adjustment, it operates over a temperature range of -35°C to +85°C. The capacitor exhibits a capacitance change with temperature of ± (1.5% + 0.3 pF) and a drift of ± (1.5% + 0.5 pF) when set at 1/4 to 1/2 turn from tight. This general-purpose trimmer is suitable for RF tuning and impedance matching applications where stable, high-Q performance is required.
The GMC31500 has a capacitance range of 240 to 700 pF.
The working voltage is 175 VDC.
The operating temperature range is -35°C to +85°C.
The GMC31500 is listed as RoHS3 compliant, though this is unverified.
The mounting type is through-hole.
The dielectric material is mica.
