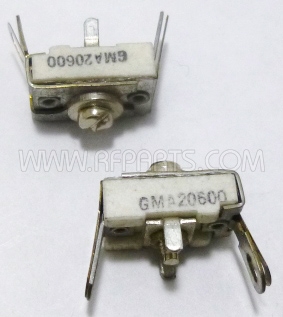

GMA20600 GMA20600 is a mica dielectric compression trimmer capacitor with a capacitance range of 25 to 115 pF and a working voltage of 175 V. It features a bracket mount design with top adjustment.
Mfr Part #:

GMA20600

Available from 1 distributors
Mfr Name: Sprague-Goodman
Sprague-Goodman
GMA20600 is a mica dielectric compression trimmer capacitor with a capacitance range of 25 to 115 pF and a working voltage of 175 V. It features a bracket mount design with top adjustment.
✓ Total Stock: 250 pcs
$ Price Range: $14.15 - $37.33

GMA20600 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
250 pcs
On Request
250 pcs On Request 1 On Request On Request 2026-02-25 06:16:38 On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

GMA20600 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Adjustment Type
Capacitance Range
Dielectric Material
Features
Height
Insulation Resistance
Lead Style
Length
Mounting Type
Operating Temperature
Termination Style
Voltage
Width
View Similar Products (0)

GMA20600 Description

Short technical summary and product information.

The GMA20600 is a mica dielectric compression trimmer capacitor from Sprague-Goodman, part of the GM series. It offers a capacitance range of 25 to 115 pF with a working voltage of 175 V DC and a dielectric withstand voltage of 350 V. The capacitor is designed for bracket mount installation with top adjustment, making it suitable for panel or chassis mounting. Key electrical characteristics include a minimum insulation resistance of 100,000 MOhm at 25°C and high Q at 1 MHz. The capacitor exhibits a capacitance change with temperature of ±(1.5% + 0.3 pF) and a drift of ±(1.5% + 0.5 pF) when set at 1/4 to 1/2 turn from tight position. Operating temperature range is -35°C to 85°C. The part features wire leads (inferred) and is RoHS3 compliant (unverified). This trimmer is typically used in RF applications requiring precise tuning and stability.

GMA20600 Quick Information

Product Type: Trimmer Capacitor
Series: GMA
Canonical Name: Mica Dielectric Compression Trimmer Capacitor, 25-115pF, 175V, Bracket Mount
Subcategory: Mica Dielectric Trimmer Capacitors

GMA20600 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Yes

GMA20600 Estimated Pricing

Qty Low High
1+ $37.33 $37.33
200+ $14.90 $14.90
500+ $14.40 $14.40
1,000+ $14.15 $14.15

Estimated market price range - modelled values for guidance only, not live distributor offers.

GMA20600 Features

  • Capacitance range 25 to 115 pF.
  • Rated working voltage 175 V DC.
  • Operating temperature -35°C to 85°C.
  • Bracket mount with top adjustment.
  • Mica dielectric for high Q and stability.

GMA20600 Applications

  • Used in RF tuning circuits requiring high Q.
  • Suitable for impedance matching in communication systems.
  • Ideal for oscillator and filter trimming applications.

GMA20600 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the operating voltage of the GMA20600?

The working voltage is 175 V DC, with a dielectric withstand voltage of 350 V.

What is the operating temperature range?

The operating temperature range is -35°C to 85°C.

What is the mounting style of this trimmer capacitor?

The GMA20600 has a bracket mount design with top adjustment.

Is the GMA20600 RoHS compliant?

It is listed as RoHS3 Compliant, but this is unverified and should be confirmed.

What is the capacitance range of the GMA20600?

The capacitance range is 25 to 115 pF.

What dielectric material is used?

The dielectric material is mica.

What is the insulation resistance?

The minimum insulation resistance is 100,000 MOhm at 25°C.
