| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
899 pcs
|
899 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Material | |
| Contact Resistance | |
| Current Rating | |
| Dielectric Withstanding Voltage | |
| Features | |
| Housing Material | |
| Insulation Resistance | |
| LED Color | |
| Mounting Type | |
| Number of Ports | |
| Number of Positions | |
| Number of Rows | |
| Orientation | |
| Shielding | |
| Tab Direction | |
| Tape & Reel | |
| Termination | |
| Termination Style | |
| Voltage Rating |

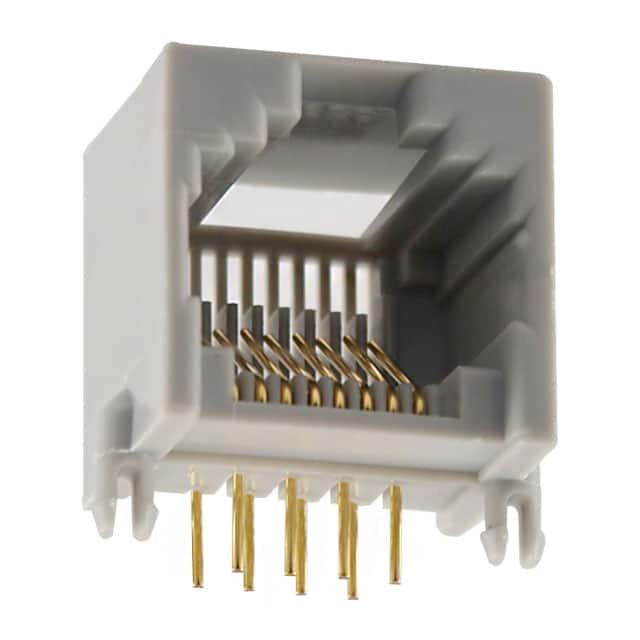

The Kycon GLX-N-88M is a right angle modular jack from the GLX series, designed for through-hole mounting. It provides an 8-position, 8-contact (8P8C) interface commonly used for Ethernet and other networking applications. The connector is unshielded and features a tab direction up orientation.
Electrical specifications include a current rating of 1.5 A and a voltage rating of 125 V DC. Contact resistance is rated at 20 mΩ maximum, insulation resistance at 500 MΩ minimum, and dielectric withstanding voltage at 1000V RMS, 60Hz. The contacts are made of phosphor bronze with a gold finish, and the housing is PBT thermoplastic rated UL 94V-0.
Mechanical features include a board lock for secure attachment to the PCB. The connector does not contain LEDs. It is suitable for use in networking equipment, data communication devices, and other applications requiring a reliable RJ45 connection.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.96 | $1.96 |
| 10+ | $1.67 | $1.67 |
| 25+ | $1.49 | $1.49 |
| 100+ | $1.41 | $1.41 |
| 300+ | $1.31 | $1.31 |
| 500+ | $1.26 | $1.26 |
| 1,000+ | $1.20 | $1.20 |
| 2,500+ | $1.14 | $1.14 |
| 5,000+ | $1.13 | $1.13 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
It is a modular jack with 8 positions and 8 contacts (8P8C), commonly used for RJ45 Ethernet connections.
The current rating is 1.5 A and the voltage rating is 125 V DC.
It is a through hole mount connector with a 90° right angle orientation.
No, it is unshielded.
The contacts are made of phosphor bronze with a gold finish.
The housing is made of PBT thermoplastic and is rated UL 94V-0.
