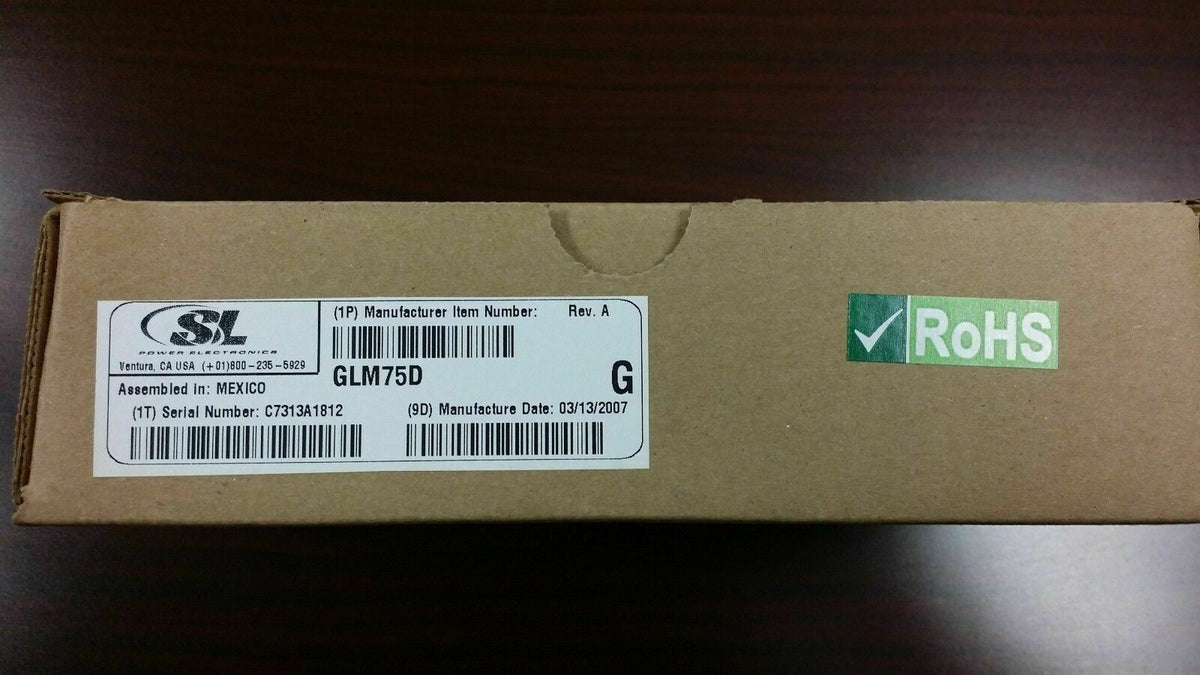

The SL Power Electronics GLM75D is a versatile quad-output AC/DC converter with a total output power of 75W. It is designed for medical industry applications and features a universal input voltage range of 90-264 VAC.
The converter offers four distinct output voltages: 5.1 VDC, 24 VDC, -12 VDC, and 12 VDC, with corresponding output currents of 8A, 2.5A, 1A, and 2.5A respectively. It operates within a temperature range of 0°C to 50°C and has an efficiency of 68% to 78%.
Designed for easy integration, the GLM75D features an open frame, chassis mount type. It includes essential protections such as overload and short circuit protection, as well as overvoltage protection on the main output. The unit is approved by CE, cURus, and TUV, ensuring compliance with relevant safety standards for medical equipment.
Key electrical specifications include a maximum input current of 2.3A at 120 Vac, 60 Hz, and a hold-up time of 20 ms minimum. The power fail signal provides early warning of output voltage drop.
90-264 VAC.
5.1 VDC, 24 VDC, -12 VDC, and 12 VDC.
75 W continuous with natural convection, 110 W with 26 cfm airflow.
Overload protection (power limiting at approximately 120 W), cycling type short circuit protection, and overvoltage protection on outputs 1 and 2.
0°C to +50°C.
Chassis mount with open-frame design.
20 ms minimum at full load, 120 Vac.
