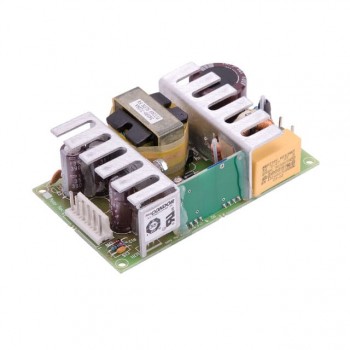

The GLM50-5G from SL Power Electronics is an open frame AC/DC converter designed for various applications, including medical use. It provides a power output of 50W with a single output voltage of 5.1V and a maximum current of 8A.
This converter operates with a universal input voltage range of 85 to 264 VAC and boasts an efficiency of 85%. Key features include adjustable output and universal input capabilities, making it versatile for different system requirements. The operating temperature range is from 0°C to 50°C.
With dimensions of 4.25" L x 2.50" W x 1.25" H (180.0mm x 63.5mm x 31.8mm), the GLM50-5G is designed for chassis mounting. It has received approvals from CE, cURus, and TUV, indicating compliance with relevant safety and performance standards.
The output voltage is 5.1V.
The maximum output current is 8A.
The power rating is 50W.
The operating temperature range is 0°C to 50°C.
It supports chassis mounting.
It is approved by CE, cURus, and TUV.
