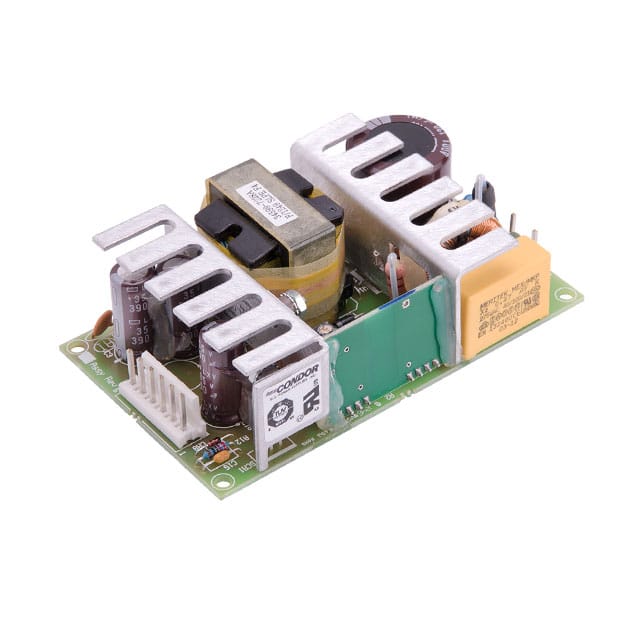

This GLM50-28 from SL Power Electronics is an open frame AC/DC converter designed for various applications, including medical. It provides a single 28V output with a maximum current of 1.8A, delivering a total power of 50W.
The converter features a universal input voltage range of 85 to 264 VAC, making it suitable for global use. Its efficiency is rated at 85%, and it operates within a temperature range of 0°C to 50°C. The unit is designed for chassis mounting and has dimensions of 4.25" L x 2.50" W x 1.25" H.
Key specifications include adjustable output and universal input capabilities. The approval agencies listed are CE, cURus, and TUV, indicating compliance with relevant safety standards. The product status is listed as obsolete.
85 to 264 VAC.
28V.
1.8A.
50W.
85%.
0°C to 50°C.
Chassis Mount.
