| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Medical Grade | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Tape & Reel | |
| Type | |
| Voltage |

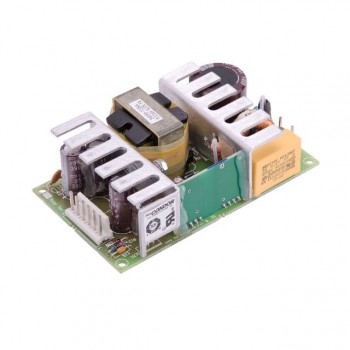

The SL Power Electronics GLM50-15G is an open-frame AC/DC converter designed for medical applications. It delivers 50W of power with a single 15V output and a maximum current of 3.3A.
Key electrical specifications include an input voltage range of 85 to 264 VAC and an efficiency of 85%. The converter features adjustable output and universal input capabilities, enhancing its versatility.
With dimensions of 180.0mm x 63.5mm x 31.8mm, it is designed for chassis mounting. The operating temperature range is from 0°C to 50°C. The unit is approved by CE, cURus, and TUV.
This model is part of the GLM50 series, known for its reliable power conversion solutions.
The primary output voltage is 15V.
The maximum output current is 3.3A.
The power rating is 50W.
The input voltage range is 85 to 264 VAC.
The operating temperature range is 0°C to 50°C.
It uses chassis mount.
Key features include adjustable output and universal input.
