| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
48 pcs
|
48 pcs | On Request | 1 | On Request | On Request | NO DC | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Current Rating (Amps) | |
| DC Resistance (DCR) | |
| Height | |
| Inductance | |
| Length | |
| Mounting Type | |
| Operating Temperature | |
| Saturation Current | |
| Shielding | |
| Supplier Device Package | |
| Tape & Reel | |
| Termination Style | |
| Tolerance | |
| Type | |
| Width |

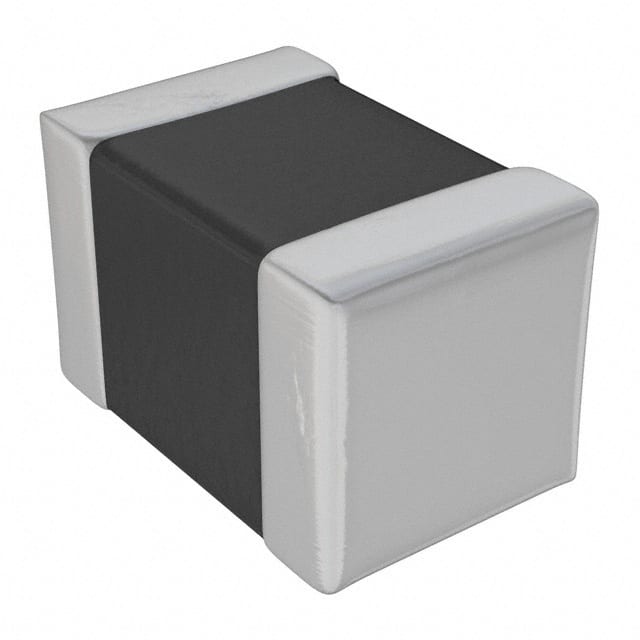

The TDK Corporation GLCR2012T101M-HC is a wirewound fixed inductor designed for surface mount applications. It offers an inductance value of 100 uH with a tolerance of ±20% and a maximum DC resistance of 4.5 Ohms. This shielded inductor can handle a current rating of up to 130 mA, with a saturation current of 40 mA. The operating temperature range is from -40°C to +105°C. The component is housed in an 0805 (2012 Metric) package, measuring 2.00mm in length, 1.25mm in width, and 1.35mm in height. It is suitable for various electronic circuits requiring stable inductance.
This fixed inductor is designed for reliable performance in demanding environments. Its construction ensures effective shielding, minimizing electromagnetic interference. The surface mount termination style facilitates automated assembly processes. The GLCR2012T101M-HC is part of the GLCR series, known for its quality and performance in power and signal applications.
The inductance of the GLCR2012T101M-HC is 100 uH.
The maximum current rating for the GLCR2012T101M-HC is 130 mA.
The DC Resistance (DCR) of the GLCR2012T101M-HC is 4.5 Ohm.
The operating temperature range is -40°C to +105°C.
The component is in an 0805 (2012 Metric) package.
