| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Temperature Coefficient | |
| Type | |
| Voltage | |
| Width |

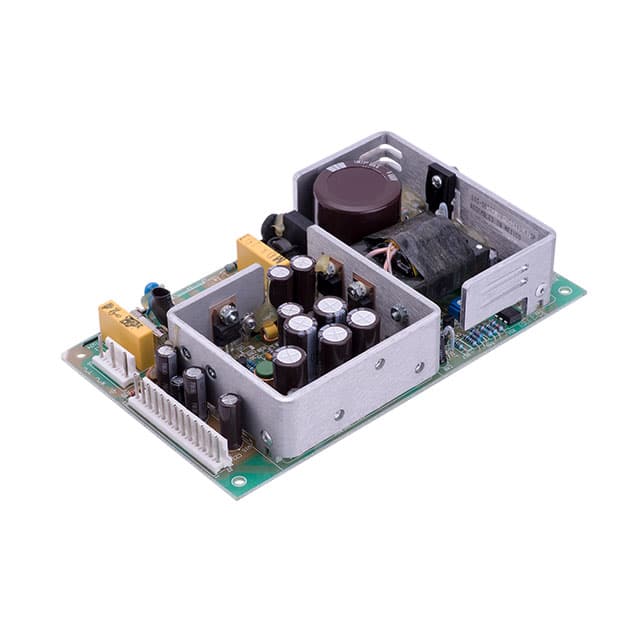

The SL Power Electronics GLC75FG is an open frame AC/DC converter designed for ITE (Commercial) applications. It offers a continuous output power of 75W under natural convection cooling, expandable to 110W with 26 cfm airflow. The unit accepts a universal input voltage range of 90-264 VAC at 47-63 Hz.
Key electrical specifications include a maximum input current of 2.3A at 120 VAC/60 Hz and an efficiency ranging from 68% to 78%. It provides overload protection, short circuit protection, and overvoltage protection on the main output. The operating temperature range is 0°C to 50°C.
This converter is chassis mountable and features a compact open frame design. Its dimensions are 146.0mm x 86.4mm x 39.7mm. It is equipped with a power fail signal output and includes built-in EMI filtering.
The GLC75FG has 4 outputs and is suitable for various commercial applications requiring reliable power conversion.
The operating temperature range is 0°C to 50°C.
The normal continuous output power is 75W for natural convection cooling, or 110W with 26 cfm airflow.
The input voltage range is 90-264 VAC.
It uses chassis mount.
It is RoHS3 Compliant.
The MSL is 1 Unlimited.
It is REACH Unaffected.
